SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


05 - Shelves And Supports

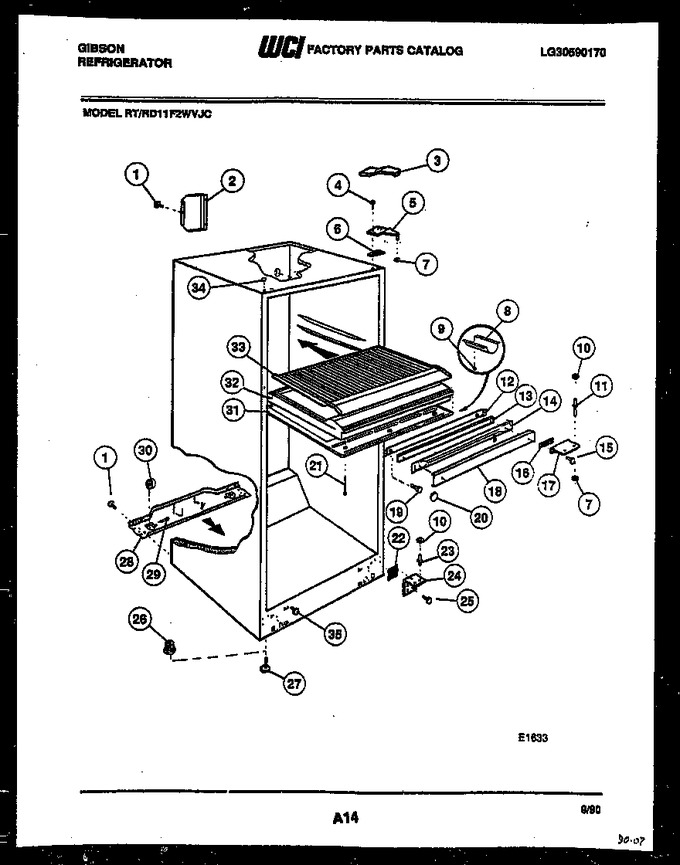

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G185075		Screw (9)		Appelez-nous	-
2	08011184		Cover		Appelez-nous	-
3	3001694		Cover-hinge-white		Appelez-nous	-
3	3001695		Cover-hinge-almd		Appelez-nous	-
4	5303211326		Screw-hinge (2)		Appelez-nous	-
5	08011172		Hinge Brkt-top		Appelez-nous	-
6	08011177		Shim-top Hinge		Appelez-nous	-
7	08011152		Washer-hinge (2)		Appelez-nous	-
8	08011200		Shield-light		Appelez-nous	-
9	G185085		Screw-mtg (2)		Appelez-nous	-
10	G185082		Washer-hinge (2)		Appelez-nous	-
11	5308000184		Pin, Ctr Hinge				$ 8.87
12	08011211		Support-mullion Mtg		Appelez-nous	-
13	08011192		Insulation		Appelez-nous	-
14	3204929		Heater-mullion		Appelez-nous	-
15	5308012258		Screw				$ 2.25
16	G185091		Shim-ctr Hinge		Appelez-nous	-
17	08011173		Hinge-brkt-ctr		Appelez-nous	-
18	08011213		Mullion-almd		Appelez-nous	-
18	08011212		Mullion-white		Appelez-nous	-
19	3205085		Screw-support (2)		Appelez-nous	-
20	3001698		Cover-almd (2)		Appelez-nous	-
20	3001697		Cover-white (2)		Appelez-nous	-
21	08011124		Screw-top Mtg (3)		Appelez-nous	-
22	08011167		Shim-btm Hinge		Appelez-nous	-
23	5303001321		Pin-btm Hinge				$ 17.25
24	08011174		Hinge Brkt-btm		Appelez-nous	-
25	08011142		Screw-sems (3)		Appelez-nous	-
26	3001700		Tee Nut (2)		Appelez-nous	-
27	08011117		Screw-leving (2)		Appelez-nous	-
28	08012871		Base-compressor		Appelez-nous	-
29	08011131		Pin-roller (2)		Appelez-nous	-
30	08011155		Roller-rear (2)				$ 6.88
31	08011195		Top-refr		Appelez-nous	-
32	08011194		Divider		Appelez-nous	-
33	08011193		Bottom-frzr		Appelez-nous	-
34	5303211323		Plug-btn-white (2)		Appelez-nous	-
34	5303211324		Plug-btn-almd (2)		Appelez-nous	-
35	3204939		Plug-white (3)		Appelez-nous	-
35	3204940		Plug-almd (3)		Appelez-nous	-
