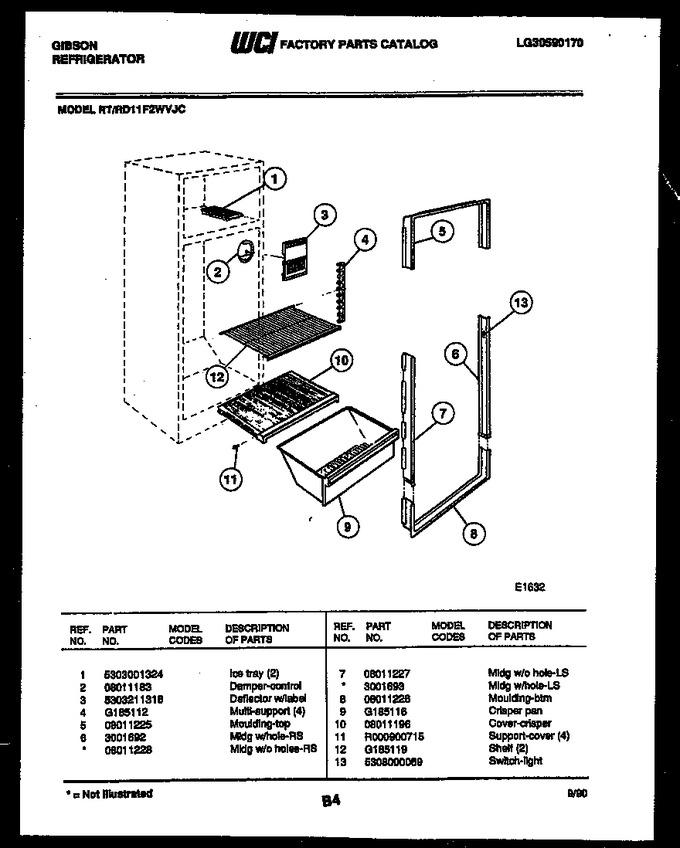

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001324 | Ice Tray (2) |
|
- | |||||
| 2 | 08011183 | Damper-control |
|
- | |||||
| 3 | 5303211316 | Deflector W/ Label |
|
- | |||||
| 4 | G185112 | Multi-support (4) |
|
- | |||||
| 5 | 08011225 | Moulding-top |
|
- | |||||
| 6 | 3001692 | Mldg W/ Hole-rs |
|
- | |||||
| 7 | 08011227 | Mldg W/o Hole-ls |
|
- | |||||
| 8 | 08011226 | Moulding-btm |
|
- | |||||
| 9 | G185116 | Crisper Pan |
|
- | |||||
| 10 | 08011196 | Cover-crisper |
|
- | |||||
| 11 | R000900715 | Support-cover (4) |
|
- | |||||
| 12 | G185119 | Shelf (2) |
|
- | |||||
| 13 | 5308000069 | Switch-light |
|
- | |||||
| 6A | 08011228 | Mldg W/o Holes-rs (non-illustrated) |
|
- | |||||
| 7A | 3001693 | Mldg W/ Hole-ls (non-illustrated) |
|
- |
