02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G181285		Freezer Door-white		Appelez-nous	-
1	G181285-08		Freezer Door-avocado		Appelez-nous	-
1	G181285-09		Freezer Door-wheat		Appelez-nous	-
1	G181285-10		Freezer Door-coffee		Appelez-nous	-
1	G181285-11		Freezer Door-almond		Appelez-nous	-
2	G169332-11		Button Plug, Almond		Appelez-nous	-
2	G169332-09		Button Plug, Wheat		Appelez-nous	-
2	G169332-10		Button-plug, Coffee		Appelez-nous	-
2	G169332-08		Button Plug-avocado		Appelez-nous	-
2	G169332-01		Button Plug, White		Appelez-nous	-
3	G175117-01		Nameplate		Appelez-nous	-
4	G188378-02		Label Nameplate		Appelez-nous	-
5	G162977-09		Button Plug-wheat		Appelez-nous	-
5	G162977-10		Button Plug-coffee		Appelez-nous	-
5	G162977-11		Button Plug-almond		Appelez-nous	-
5	G162977-01		Button Plug-white		Appelez-nous	-
5	G162977-08		Button Plug-avocado		Appelez-nous	-
6	G181289-11		Refrigerator Door-almond		Appelez-nous	-
6	G181289		Refrigerator Door-white		Appelez-nous	-
6	G181289-08		Refrigerator Door-avocado		Appelez-nous	-
6	G181289-10		Refrigerator Door-coffee		Appelez-nous	-
6	G181289-09		Refrigerator Door-wheat		Appelez-nous	-
7	G186932-04		Gasket-refrigerator Door		Appelez-nous	-
8	G165701-01		Inner Panel-refrigerator		Appelez-nous	-
9	G164698-17		Door Rack-refrigerator (2)		Appelez-nous	-
10	G163222-40		Butter Door		Appelez-nous	-
11	G164698-18		Door Rack-freezer		Appelez-nous	-
12	G165702-01		Inner Panel-freezer		Appelez-nous	-
13	G186932-05		Gasket-freezer Door		Appelez-nous	-
14	G162938-02		Handle Grip (2)		Appelez-nous	-
15	G172496		Handle End-top (2)		Appelez-nous	-
16	G172497		Handle End-bottom (2)		Appelez-nous	-
*10446	G185566		Screw		Appelez-nous	-
*10446	G89643		Insulation (bulk)		Appelez-nous	-
12A	G162585		Screw		Appelez-nous	-
1A	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
3A	G153407-60		Tape-nameplate Mounting (non-illustrated)		Appelez-nous	-
6A	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
8A	G162585		Screw		Appelez-nous	-

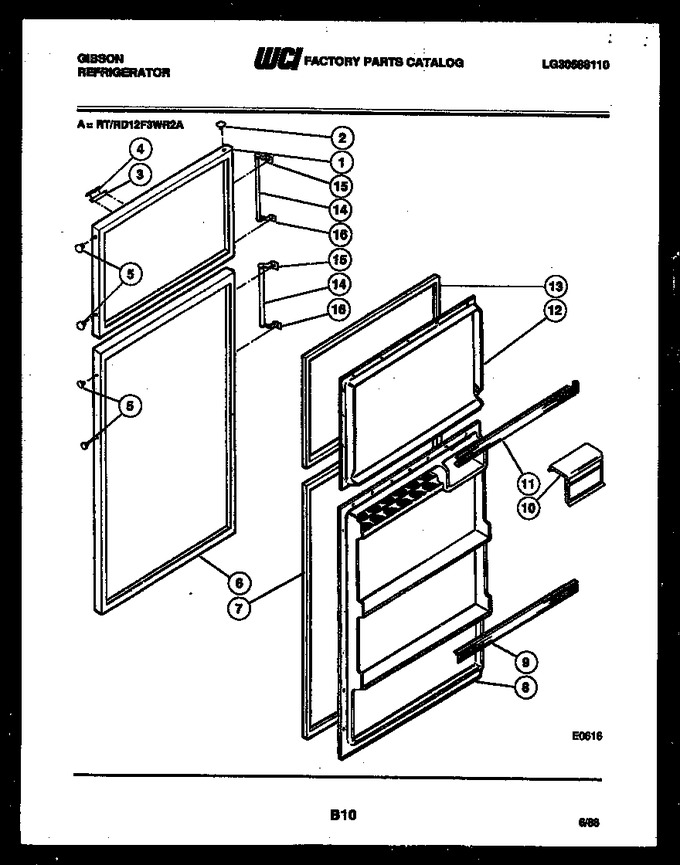

    View Diagram in Separate Window       Print Part List
