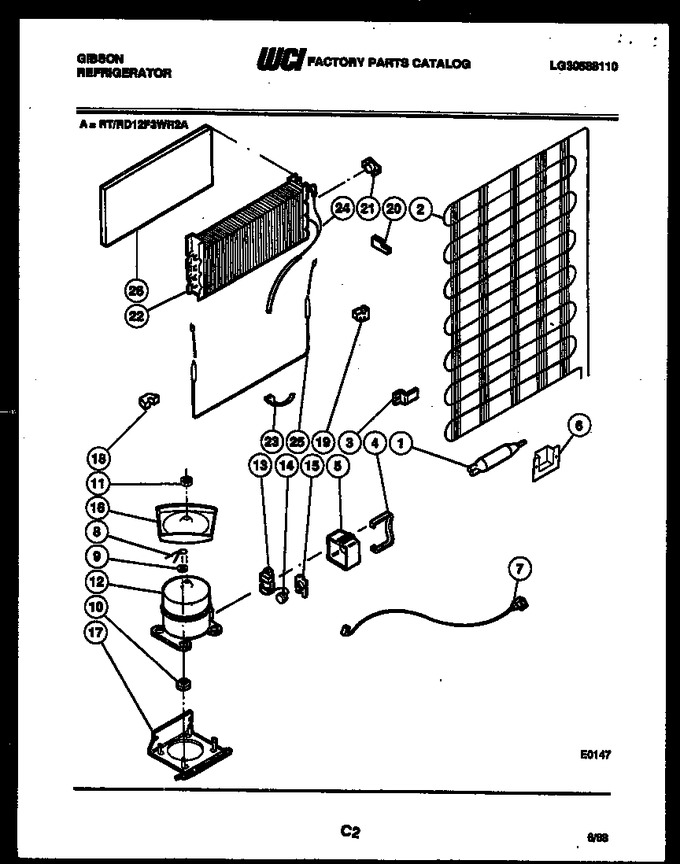

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G186717 | Drier |
|
- | |||||
| 2 | G164924 | Condenser |
|
- | |||||
| 3 | G164637 | Bracket-condenser Mounting (4) |
|
- | |||||
| 4 | G166057 | Strap-terminal Cover |
|
- | |||||
| 5 | G166056 | Cover, Terminal |
|
- | |||||
| 6 | G183584 | Cover, Wiring |
|
- | |||||
| 7 | G162549-01 | Service Cord |
|
- | |||||
| 8 | G163204 | Clip-compressor (3) |
|
- | |||||
| 9 | G164634 | Washer-compressor (3) |
|
- | |||||
| 10 | G177617 | Grommet-compressor (4) |
|
- | |||||
| 11 | G164958 | Lock Nut-pan |
|
- | |||||
| 12 | G186043 | Compressor W/ Elec |
|
- | |||||
| 13 | G182225-15 | Relay |
|
- | |||||
| 14 | G187544 | Overload |
|
- | |||||
| 15 | G188957 | Clip-overload |
|
- | |||||
| 16 | G171778 | Drain Pan-defrost |
|
- | |||||
| 17 | G162822 | Plate, Compressor Mounting |
|
- | |||||
| 18 | G188375 | Insulation Block Ls |
|
- | |||||
| 19 | G185299 | Insulation Block Rs |
|
- | |||||
| 20 | G185276 | Insulation Plug Rs |
|
- | |||||
| 21 | G162690-01 | Thermostat, Defrost |
|
- | |||||
| 22 | G162297 | Evaporator-coil |
|
- | |||||
| 23 | G165546 | Strap, Evaporator |
|
- | |||||
| 24 | G149013 | Heat Exchanger |
|
- | |||||
| 25 | G162432-01 | Heater-defrost |
|
- | |||||
| 26 | G166511-02 | Insulator-evaporator |
|
- | |||||
| 26A | G166062-01 | Wiring, Harness, Compressor |
|
- | |||||
| 26B | G189377 | Hot Tube Repair Kit |
|
- | |||||
| 26C | 3916001 | Drain Pan Retainer Kit |
|
- |
