Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4163236 Hose, Flexible (fill Valve To Air Gap) Appelez-nous -
2 4162103 Clamp, Hose Appelez-nous -
3 4171222 Air Gap, Fill Assembly (includes Items 1 & 2) Appelez-nous -
4 4161545 Gasket, Rubber Appelez-nous -
5 4171300 Nut (fill Air Gap) Special Order $ 34.65

6 4161507 Clamp, Hose Appelez-nous -
7 WP4171000 Fill Valve Assembly   (Replaces: 4171000) Special Order $ 183.01

8 WP693304 Screw 10-16 X 1/2   (Replaces: 4159468) Special Order $ 7.04

9 4162935 Strap (flexible Connector To Tank) Appelez-nous -
10 4159424 Screw, 4-40 X 3/4 Appelez-nous -
11 4171117 Switch, Overfill Control Appelez-nous -
12 4161732 Standpipe, Overfill Appelez-nous -
13 WP8531743 Gasket, Flat   (Replaces: 4161670) In-Stock Immediately $ 42.54

14 4161596 Nut, Standpipe Appelez-nous -
15 4162407 Float & Retainer Assembly Appelez-nous -
16 4171116 Lever, Overflow Switch Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

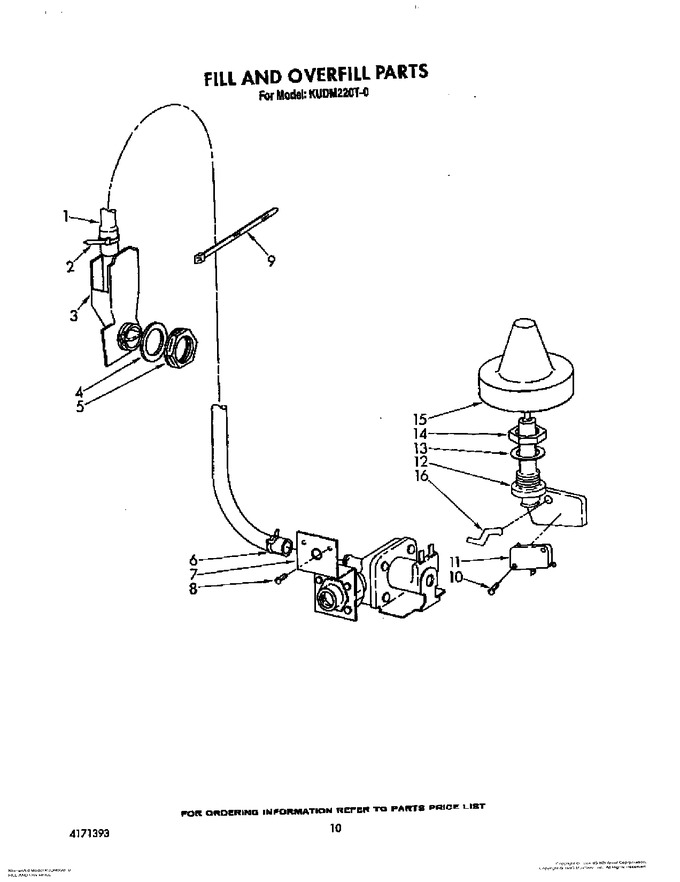

Diagram for KUDM220T0
