Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4162664 Tube & Connector Assembly Appelez-nous -
2 4162723 Connector, Vertical Conduit Appelez-nous -
3 4162655 Conduit, Vertical Appelez-nous -
4 4162609 Retainer, Conduit Appelez-nous -
5 4162500 Retainer, Manifold Appelez-nous -
6 4162466 Manifold, Upper Arm Appelez-nous -
7 4161737 Screw Appelez-nous -
10 4171342 Wash/rinse Arm Assembly Appelez-nous -
13 4161737 Screw Appelez-nous -
14 4161617 Tube (manifold To Receiver) Appelez-nous -
16 4171240 Washer Appelez-nous -
17 4162436 Receiver, Manifold Appelez-nous -
18 4162439 Support, Receiver Appelez-nous -
19 4163187 Spacer, Upper Rack Appelez-nous -
20 4163188 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

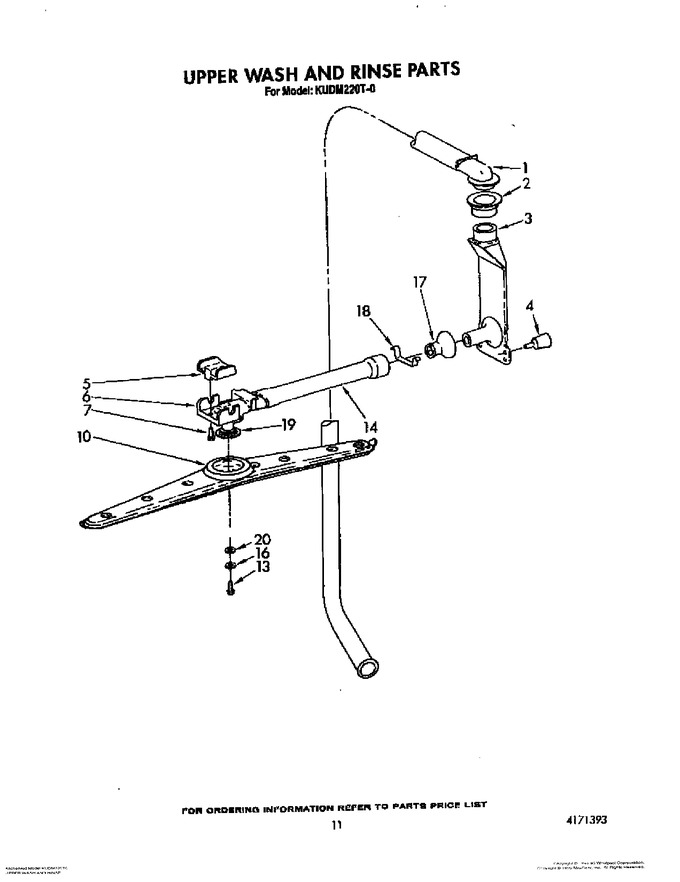

Diagram for KUDM220T0
