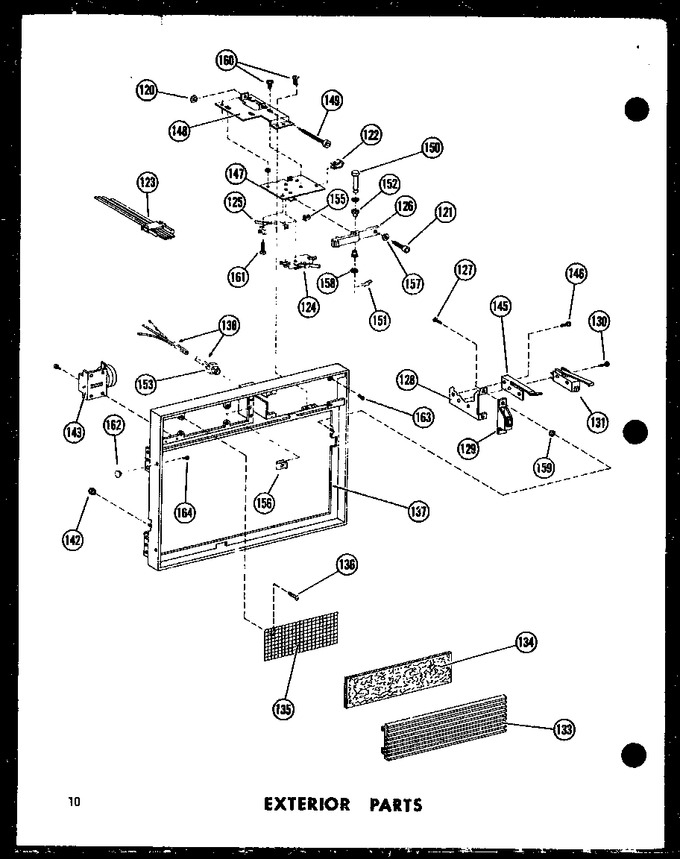

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
120	M0274301		E Ring External K		Appelez-nous	-
121	M0204617		Screw		Appelez-nous	-
122	M0102301		Clamp		Appelez-nous	-
123	C8739801		Wiring Harness		Appelez-nous	-
124	C3670014		Switch-interlock (limit)		Appelez-nous	-
125	C3670014		Switch-interlock (limit)		Appelez-nous	-
126	B5755701		Actuating Arm		Appelez-nous	-
127	M0218117		Screw		Appelez-nous	-
128	B5675403		Bracket-latch		Appelez-nous	-
129	C3680202		Strike-latch		Appelez-nous	-
130	M0227520		Screw		Appelez-nous	-
131	A3163406		Switch Preform		Appelez-nous	-
133	C3678403		Grill, Air Inlet		Appelez-nous	-
134	A3094903		Filter		Appelez-nous	-
135	B5672303		Screen-air Inlet		Appelez-nous	-
136	M0228016		Screw		Appelez-nous	-
137	D7133404		Bezel, Outer Case		Appelez-nous	-
138	D7265501		Wiring Harness		Appelez-nous	-
142	M0283401		Nut, Self Thread		Appelez-nous	-
143	C8701101		Meter		Appelez-nous	-
145	A3186401		Spring-latch		Appelez-nous	-
146	M0232012		Screw		Appelez-nous	-
147	B5747501		Mtg Plate-interlock		Appelez-nous	-
148	B5747201		Adj Brkt-switch		Appelez-nous	-
149	A3262501		Adj Screw		Appelez-nous	-
150	A3260201		Pin-retainer		Appelez-nous	-
151	A3171501		Clip,hairpin		Appelez-nous	-
152	A3168101		See Svc Ltr Cr-163d		Appelez-nous	-
153	R0164118		Socket Assy-rc7a		Appelez-nous	-
155	M0114901		Clip		Appelez-nous	-
156	M0288119		Speed Nut		Appelez-nous	-
157	M0282005		Nut K				$ 7.07
158	M0274032		Washer Non-metal		Appelez-nous	-
159	M0270524		Washer		Appelez-nous	-
160	M0230015		Screw		Appelez-nous	-
161	M0227520		Screw		Appelez-nous	-
162	M0285902		T Nut		Appelez-nous	-
163	M0113006		Clip A		Appelez-nous	-
164	M0205442		Screw, Nylock		Appelez-nous	-
