SELECT A DIAGRAM
01 - Exterior Parts
02 - Exterior Parts

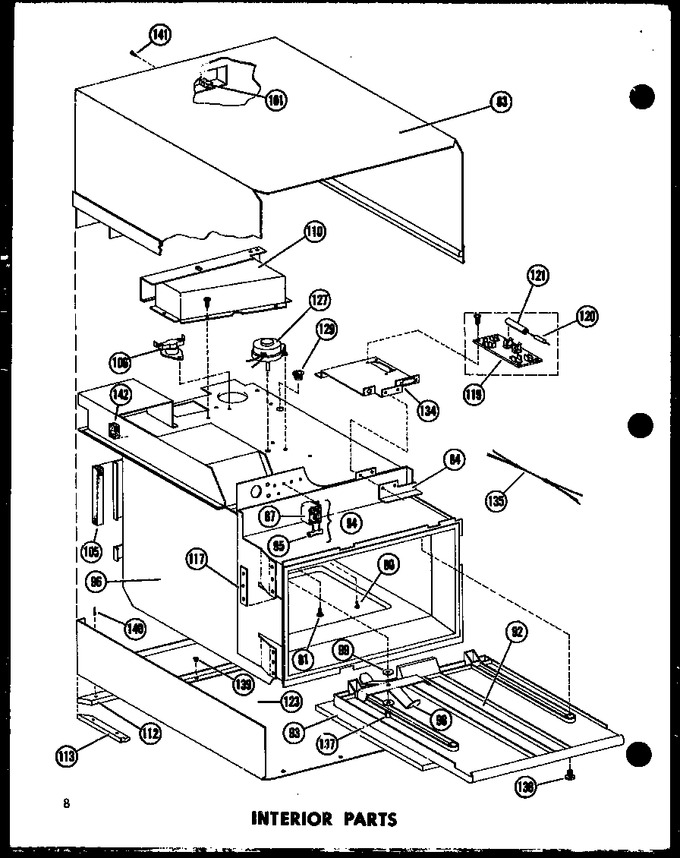

03 - Interior Parts
04 - Interior Parts
05 - Interior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 80 | M0230015 | Screw |
|
- | |||||
| 81 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 83 | C8757501 | Top Assy-oc |
|
- | |||||
| 84 | B5756101 | Brkt Supt-interlock |
|
- | |||||
| 87 | C3669601 | Relay Kit |
|
- | |||||
| 92 | D7234401 | Grease Shield Kit |
|
- | |||||
| 93 | B5748801 | Tray, Oven |
|
- | |||||
| 94 | R0159006 | Relay Kit |
|
- | |||||
| 95 | M0305007 | Resistor, Relay A |
|
- | |||||
| 96 | D7265702 | Oven Wld |
|
- | |||||
| 98 | C8708601 | Stirrer Blade (antenna) |
|
- | |||||
| 99 | A3109101 | Washer |
|
- | |||||
| 101 | A3030308 | Gasket |
|
- | |||||
| 105 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 106 | B5703002 | Thermal Cut Out |
|
- | |||||
| 110 | D7262901 | Air Duct Wld |
|
- | |||||
| 112 | C8732602 | Gasket |
|
- | |||||
| 113 | C8732601 | Gasket |
|
- | |||||
| 117 | A3250301 | Shim-hinge |
|
- | |||||
| 119 | B5751401 | Board-multiprotector |
|
- | |||||
| 120 | M0308103 | Fuse |
|
- | |||||
| 121 | M0305402 | Resistor Fuse Kit |
|
- | |||||
| 123 | D7262403 | Oc Bottom Wld |
|
- | |||||
| 127 | B5602809 | Motor |
|
- | |||||
| 129 | A4554806 | Snap Bushing |
|
- | |||||
| 134 | C8756501 | Mtg Plate |
|
- | |||||
| 135 | C3655860 | Jumper Wire |
|
- | |||||
| 137 | M0114002 | Clip |
|
- | |||||
| 138 | A3245601 | Screw Retainer |
|
- | |||||
| 139 | M0310010 | Plug |
|
- | |||||
| 140 | A4539602 | Pop Rivet |
|
- | |||||
| 141 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 142 | A3030308 | Gasket |
|
- |
