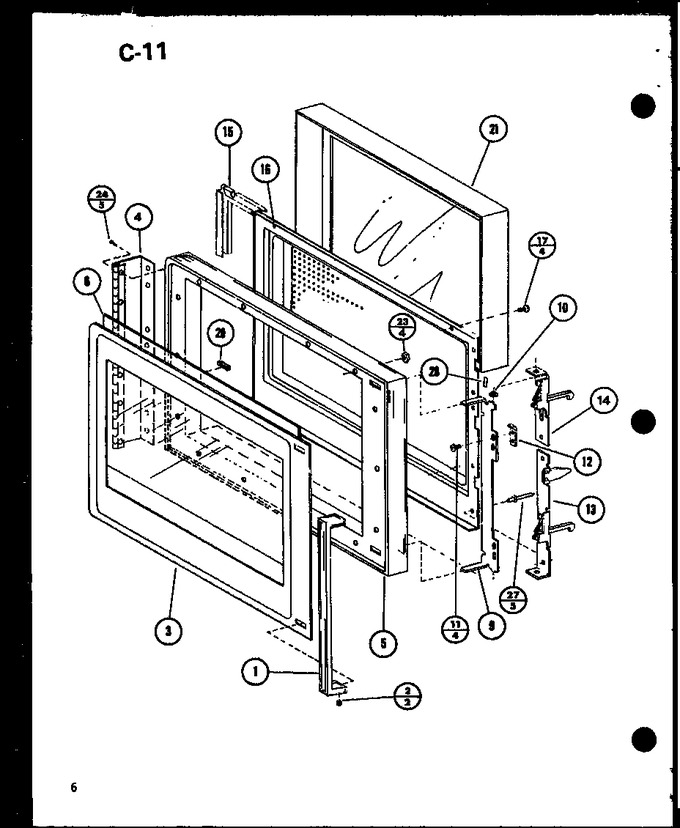

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8830803		Handle		Appelez-nous	-
2	M0208328		Screw		Appelez-nous	-
3	D7469101		Retainer		Appelez-nous	-
4	C8903601		Hinge, Door		Appelez-nous	-
5	D7441601		Door Outer		Appelez-nous	-
6	C8861101		Glass, Door		Appelez-nous	-
9	C8841001		Actuator-latch		Appelez-nous	-
10	B8306202		Bushing		Appelez-nous	-
11	M0202515		Screw A		Appelez-nous	-
12	B8314502		Adjustor		Appelez-nous	-
13	R0183067		Lwr Door Latch Assy		Appelez-nous	-
14	R0183068		Upper Door Latch Assy		Appelez-nous	-
15	D7320008		Gasket		Appelez-nous	-
15	D7320006		Gasket		Appelez-nous	-
15	D7320007		Gasket		Appelez-nous	-
15	D7320005		Gasket		Appelez-nous	-
16	C8755402		Inner Door Assy		Appelez-nous	-
17	M0259218		Screw		Appelez-nous	-
21	D7564601		Inner Door Mold Assy		Appelez-nous	-
23	M0288806		Nut		Appelez-nous	-
24	M0253217		Screw		Appelez-nous	-
27	A4539601		Pop Rivet		Appelez-nous	-
28	M0275115		Tape Per Roll		Appelez-nous	-
29	A3030335		Gasket-per Ft		Appelez-nous	-
