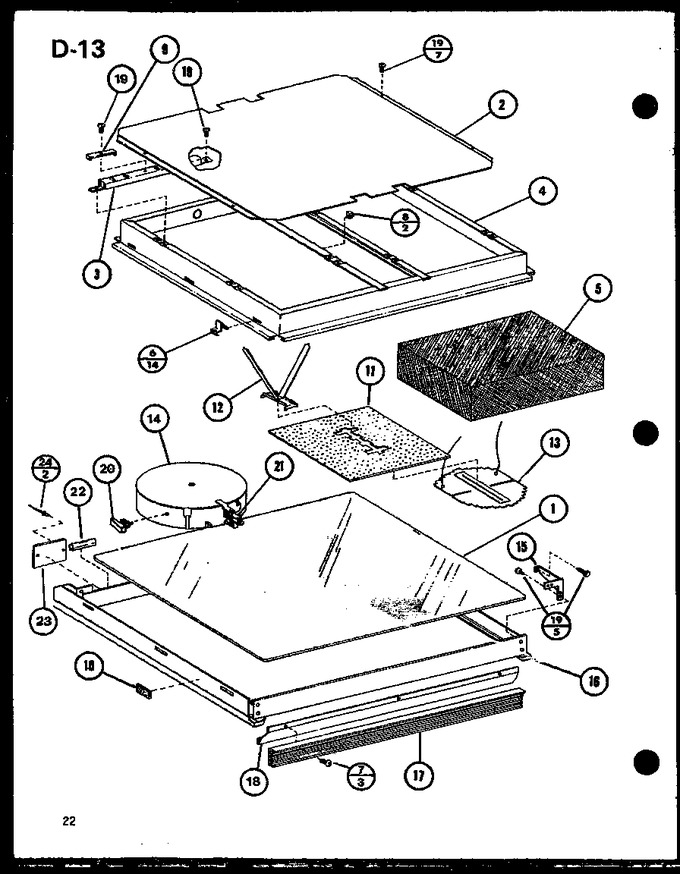

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0157504 | Net-kit,heater Panel |
|
- | |||||
| 2 | C2704201 | Cover-htr Box |
|
- | |||||
| 3 | C2705701 | Bar-hold Down |
|
- | |||||
| 4 | D8508501 | Htr Box Assy |
|
- | |||||
| 5 | C2710703 | Insulation |
|
- | |||||
| 5 | C2710803 | Insulation |
|
- | |||||
| 5 | C2702203 | Insulation K |
|
- | |||||
| 6 | B5001502 | Clip |
|
- | |||||
| 7 | M0254518 | Screw |
|
- | |||||
| 8 | M0110503 | Clip |
|
- | |||||
| 9 | B5001201 | Spring |
|
- | |||||
| 10 | B5718912 | Gasket |
|
- | |||||
| 11 | C2702002 | Insulation Lo-con K |
|
- | |||||
| 11 | C2702001 | Insul-lo-con K |
|
- | |||||
| 12 | C2701701 | Hld Down Assy |
|
- | |||||
| 13 | R0157501 | Element Kit, Small |
|
- | |||||
| 13 | R0157502 | Element Kit, Large |
|
- | |||||
| 14 | D8527201 | See Svc Ltr Cba-136 |
|
- | |||||
| 15 | B5005802 | Brkt-front R |
|
- | |||||
| 15 | B5005801 | Brkt-front L |
|
- | |||||
| 16 | D8533002 | Ring Top Frame |
|
- | |||||
| 17 | D8509402 | Grille |
|
- | |||||
| 18 | C2706101 | Guard |
|
- | |||||
| 19 | M0217224 | Screw |
|
- | |||||
| 20 | C2702401 | See Serv Ltr Cba-136 |
|
- | |||||
| 21 | C2712101 | Switch |
|
- | |||||
| 22 | M0293001 | Edge Liner-ft |
|
- | |||||
| 23 | B5029701 | Terminal Board |
|
- | |||||
| 24 | A4539619 | Pop Rivet |
|
- |
