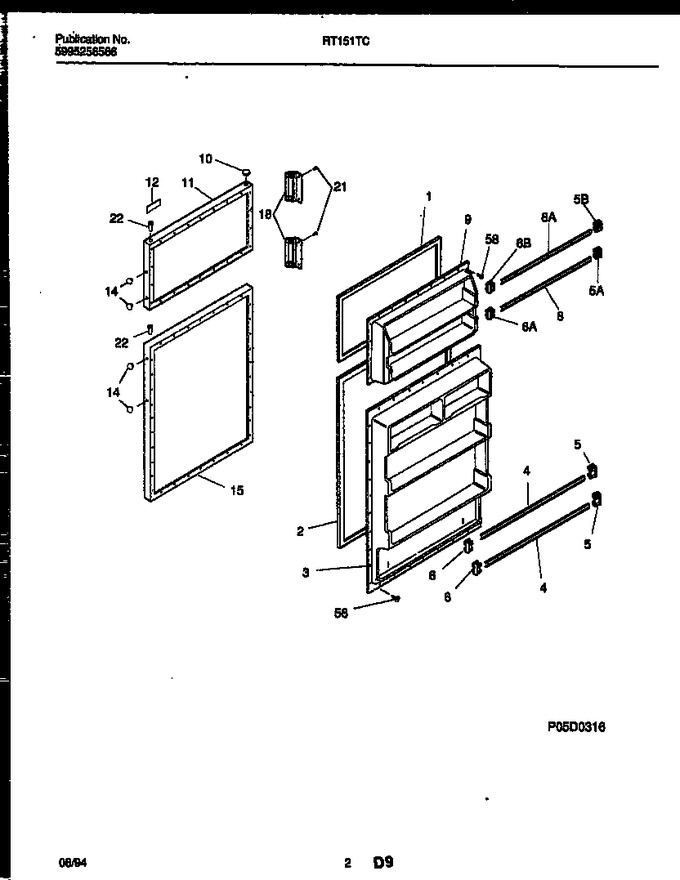

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007123 | Gasket-frzr Door, White, Magnetic |
|
$ 188.54 | |||||
| 2 | 218730603 | Gasket-refr Door, White, Magnetic (Replaces: 5318680311) |
|
$ 62.07 | |||||
| 3 | 5303209523 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303272143 | Rack-door, Wide, (2) |
|
- | |||||
| 5 | 3206150 | Support-door Rack, Extends 1/81``, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Extends 1.81``, Lh |
|
- | |||||
| 8 | 5303272150 | Rack-door, Wide, Frzr |
|
- | |||||
| 9 | 5303209527 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 3916588 | Panel-frzr Door, White |
|
- | |||||
| 12 | 215366401 | Nameplate |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 3916589 | Panel-refr Door, White |
|
- | |||||
| 18 | 5318750101 | Handle-door, Plastic, Charcoal Gray |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 5A | 3206161 | Support-door Rack, Extends 1.06``, Rh |
|
- | |||||
| 5B | 3206165 | Support-door Rack, Extends 1.06``, Rh |
|
Immediately | $ 8.19 | ||||
| 6A | 3206162 | Support-door Rack, Extends 1.06``, Lh |
|
- | |||||
| 6B | 3206166 | Support-door Rack, Extends 1.06``, Lh |
|
Immediately | $ 9.93 | ||||
| 8A | 5303272149 | Rack-door, Narrow, Frzr |
|
- |
