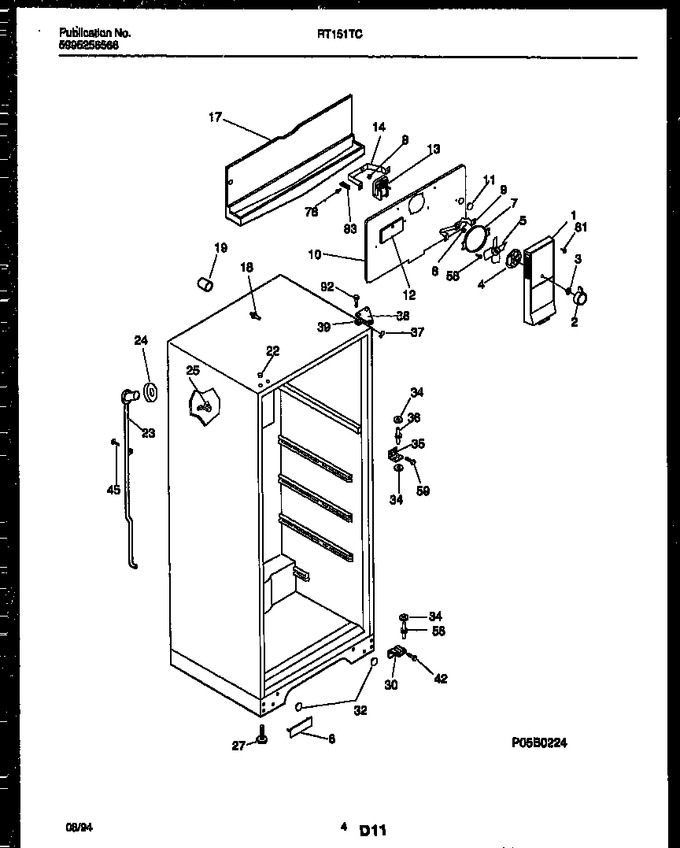

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206108		Cover-fan Low Profile		Appelez-nous	-
2	5303296336		Knob-damper Control		Appelez-nous	-
3	5303001028		Nut,push-on		Appelez-nous	-
4	3206110		Damper-fan Cover				$ 53.08
5	5308000010		Fan Blade			Immediately	$ 49.03
6	3206135		Cover-hole, Lower Hinge		Appelez-nous	-
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	0206119		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5308013636		Plug-decorative, Ice Maker Holes		Appelez-nous	-
13	5300158289		Motor-evap Fan			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	3206146		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
22	5303001388		Plug-button, White, Upr Hinge Holes				$ 2.60
23	5303269702		Tube-drain, W/seal Ring				$ 104.63
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5308000056		Spout-drain Tube				$ 11.66
27	3206141		Screw-leveling, (2)				$ 11.50
30	3206136		Bracket-lower Hinge		Appelez-nous	-
32	3206142		Plug-button, Cabinet Base, (2)		Appelez-nous	-
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	5303001369		Bracket-ctr Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202336		Trim-cabinet Corner, White		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
39	5303001037		Shim - Upper Hinge				$ 12.39
42	3206143		Screw-lwr Hinge Mtg, Hex Washer Hd, 1/4-20 X 5/8, (4)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
56	5303001321		Pin-lower Hinge				$ 17.25
58	5308002748		Screw		Appelez-nous	-
59	3206134		Screw-hinge/mullion, Acorn Hx Wsh Hd, 10-24(23) X 1		Appelez-nous	-
78	5303210353		Screw, Connectr Brkt, Hex Washer Head, 8, 32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
*10205	5308016571		Plug-button, Cabinet Liner				$ 4.79
10A	5303209814		Nut, ``u`` Type, No. 8-15(a) (non-illustrated)		Appelez-nous	-
25A	5303001361		Pin-push, Plastic (non-illustrated)		Appelez-nous	-
38A	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
