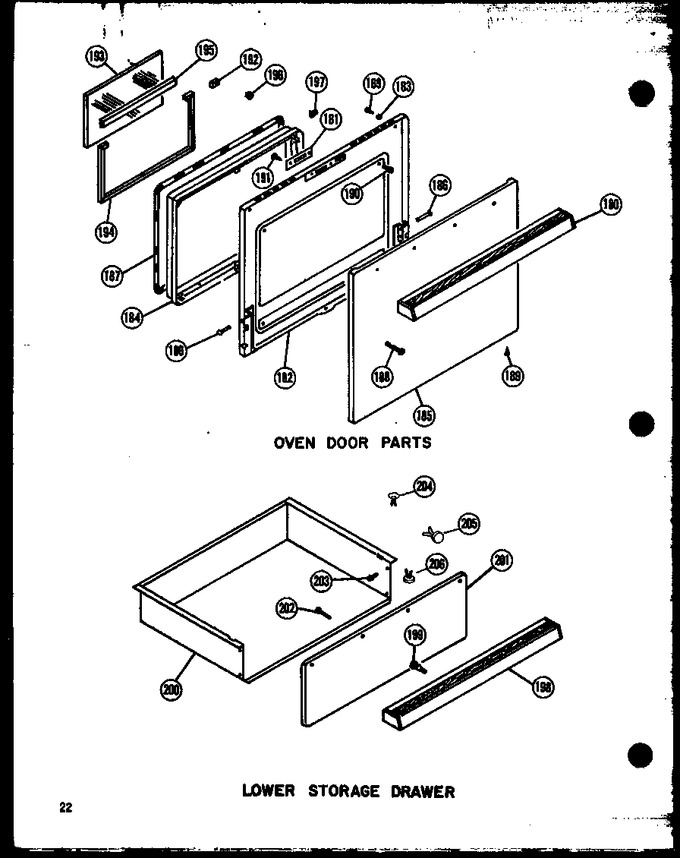

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
180	R0179025		Handle Assembly		Appelez-nous	-
181	R0178835		Plate, Door Latch		Appelez-nous	-
182	R0178836		Backer-oven Door		Appelez-nous	-
183	R0190023		Washer		Appelez-nous	-
184	R0178837		Sub Backer-ov Dr		Appelez-nous	-
185	R0178838		Oven Door Pnl., Black Glass		Appelez-nous	-
185	R0178870		Oven Door Panel-a		Appelez-nous	-
185	R0178871		Oven Door Gold		Appelez-nous	-
185	R0178872		Oven Door Panel-w		Appelez-nous	-
186	R0191052		Rivet		Appelez-nous	-
187	R0182046		Dr. Gasket		Appelez-nous	-
188	R0188020		Screw-handle		Appelez-nous	-
189	R0187008		Screw, Motor Mount		Appelez-nous	-
190	R0187009		Screw, Sub-backer		Appelez-nous	-
191	R0187010		Screw-latch Plate		Appelez-nous	-
192	R0178839		Spacer Door Handle		Appelez-nous	-
196	M0282009		Nut   (Replaces: R0189017)				$ 12.06
197	R0191053		Speed Clip		Appelez-nous	-
198	R0179025		Handle Assembly		Appelez-nous	-
199	R0189018		Toggle Nut		Appelez-nous	-
200	R0178842		Skirt Assy		Appelez-nous	-
201	R0178843		Drawer Panel-w		Appelez-nous	-
201	R0178846		Drawer Panel-g		Appelez-nous	-
201	R0178844		Drawer Panel-c		Appelez-nous	-
201	R0178845		Drawer Panel-a		Appelez-nous	-
202	R0187011		Screw		Appelez-nous	-
203	R0187012		Screw-drawer Panel		Appelez-nous	-
204	R0181077		Plastic Spacer, Top		Appelez-nous	-
205	R0182047		Rubber Bumper		Appelez-nous	-
206	R0181078		Plastic Glider		Appelez-nous	-
NI	R0179027		End Cap-handle-lh		Appelez-nous	-
NI	R0179026		End Cap-handle-rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
