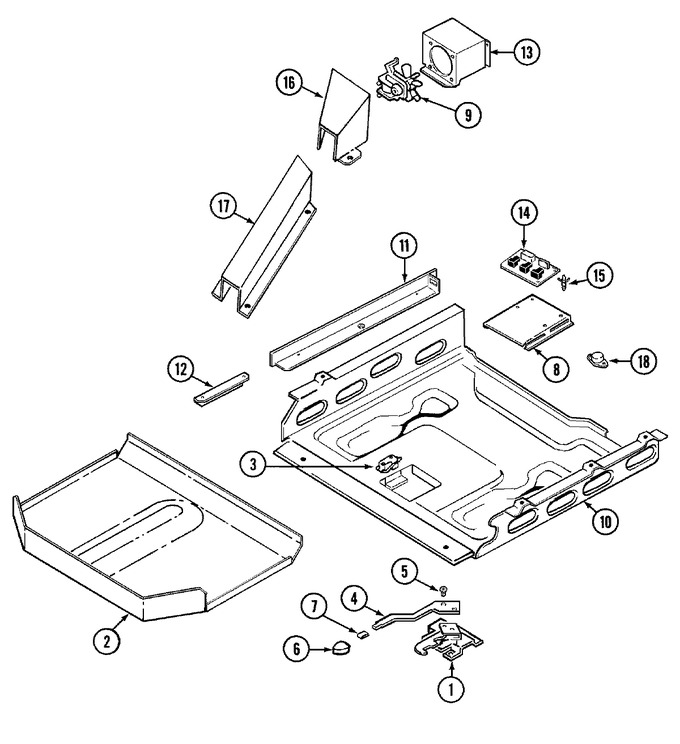

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4804F028-60 | Insulation, Latch Assy. | 10 |
|
- | ||||
| 1 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 1 | 3604F159-45 | Shield Insulation, Catch | 10 |
|
- | ||||
| 1 | 8002P025-60 | Latch Assy. | 10 |
|
- | ||||
| 1 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 26 |
|
$ 6.70 | ||||
| 1 | 74003032 | Latch Assy. | 26 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 3604F199-51 | Shield, Wire | 10 |
|
- | ||||
| 2 | WPW10339879 | Strap, Tube (Replaces: 8019P003-60) | 10 |
|
$ 7.11 | ||||
| 3 | 7101P031-60 | Screw | 10 |
|
- | ||||
| 3 | 7403P363-60 | Switch, Door Latch | 10 |
|
- | ||||
| 4 | 8009P028-60 | Lever, Latch | 10 |
|
- | ||||
| 4 | 74003005 | Lever, Latch (blk) | 28 |
|
- | ||||
| 5 | 7116P003-60 | Bolt | 10 |
|
- | ||||
| 5 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 10 |
|
$ 4.29 | ||||
| 6 | W10124350 | Not Required Part Or See Note | 28 |
|
- | ||||
| 6 | W10124350 | Not Required Part Or See Note | 25 |
|
- | ||||
| 6 | 7701P132-60 | Handle, Door Latch (blk) | 10 |
|
- | ||||
| 7 | 7112P112-60 | Clip, Latch Lever | 10 |
|
$ 4.83 | ||||
| 7 | W10124350 | Not Required Part Or See Note | 25 |
|
- | ||||
| 7 | W10124350 | Not Required Part Or See Note | 28 |
|
- | ||||
| 8 | 4005F466-51 | Cover, Door Lock | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 7427P012-60 | Fan | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74002685 | Box, Burner | 11 |
|
- | ||||
| 10 | 4011F223-80 | Box, Burner | 10 |
|
- | ||||
| 11 | 3604F214-51 | Shield, Heat (rt) | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 3604F213-51 | Shield, Heat (lt) | 10 |
|
- | ||||
| 12 | 3801F327-51 | Bracket | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 4001F098-51 | Housing, Fan | 10 |
|
- | ||||
| 13 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 7428P021-60 | Board, Relay | 10 |
|
- | ||||
| 15 | 74001813 | Support, Relay | 10 |
|
- | ||||
| 15 | 8004P020-60 | Support, Relay Board | 10 |
|
- | ||||
| 15 | 8004P032-60 | Support, Relay | 10 |
|
- | ||||
| 16 | 3818F056-51 | Duct, Air | 10 |
|
- | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | 3818F053-51 | Channel, Air Top | 10 |
|
- | ||||
| 17 | 3818F054-51 | Channel, Bottom | 10 |
|
- | ||||
| 17 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | 3818F059-51 | Channel, Air | 10 |
|
- | ||||
| 18 | 7403P307-60 | Thermostat, Snap Acting | 10 |
|
- | ||||
| 18 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 19 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 19 | 7111P020-60 | Clamp, Wire | 10 |
|
- |
