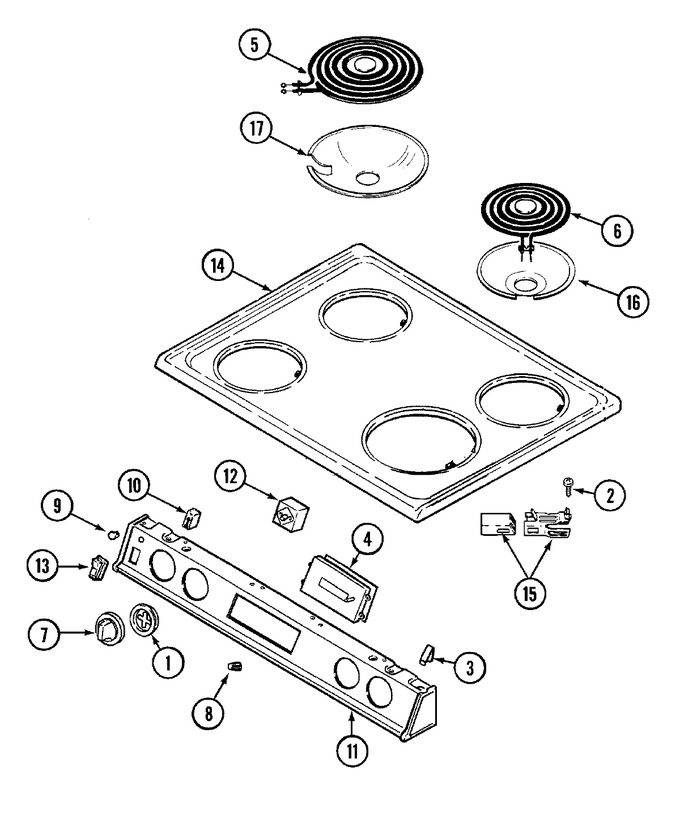

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7740P020-60 | Bezel, Knob (blk) | 10 |
|
- | ||||
| 2 | WP74004005 | Screw (Replaces: 7101P349-60) | 10 |
|
$ 6.95 | ||||
| 3 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 4 | 74002271 | Clock (blk) | 19 |
|
- | ||||
| 4 | 7601P278-60 | Clock (blk) | 10 |
|
- | ||||
| 4 | 74003191 | Bracket, Clock | 10 |
|
- | ||||
| 4 | WPY706189 | Screw (Replaces: 7101P346-60) | 10 |
|
Immediately | $ 6.47 | |||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | WP12001560 | Element, Surface (8``) (Replaces: 74004089) | 33 |
|
$ 172.17 | ||||
| 5 | WP12001560 | Element, Surface (8``) (Replaces: 74001774) | 16 |
|
$ 172.17 | ||||
| 5 | WP12001560 | Element (8``) (Replaces: 7406P080-60) | 10 |
|
$ 172.17 | ||||
| 6 | WPW10259868 | Element (6``) (Replaces: 7406P081-60) | 10 |
|
Immediately | $ 112.28 | |||
| 6 | WP12001559 | Element, Surface (6``) (Replaces: 74004090) | 33 |
|
$ 141.24 | ||||
| 6 | WPW10259868 | Element, Surface (6``) (Replaces: 74001776) | 16 |
|
Immediately | $ 112.28 | |||
| 7 | 7731P082-60 | Knob, Therm/burner (blk) | 10 |
|
- | ||||
| 8 | W10124350 | Not Required Part Or See Note Not Required | 19 |
|
- | ||||
| 8 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P492-60) | 10 |
|
$ 12.13 | ||||
| 9 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 10 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 11 | 7722P134-60 | Panel, Control (blk) | 10 |
|
- | ||||
| 11 | 74003008 | Panel, Control (blk) | 24 |
|
- | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 12 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 12 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 13 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 14 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 10 |
|
$ 6.47 | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74001249 | Top Assy. (alm) | 10 |
|
- | ||||
| 15 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 16 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 7725P048-60) | 10 |
|
Immediately | $ 12.05 | |||
| 16 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 14 |
|
Immediately | $ 12.05 | |||
| 17 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 14 |
|
Immediately | $ 15.56 | |||
| 17 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 7725P047-60) | 10 |
|
Immediately | $ 15.56 | |||
| 18 | 5170P228-60 | Harness, Sensor & Lock | 10 |
|
- | ||||
| 18 | 74001589 | Harness, Wire Control/top | 10 |
|
- | ||||
| 18 | 74001671 | Harness, Control Panel----na | 10 |
|
- | ||||
| 18 | 74001583 | Harness, Clock/relay | 10 |
|
- | ||||
| 19 | 8113P068-60 | Manual, Use & Care | 10 |
|
- | ||||
| 19 | 8113P026-60 | Insert, Instr Sheet (clock) | 10 |
|
- | ||||
| 19 | 16007454 | Manual, Use & Care | 19 |
|
- | ||||
| 20 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
