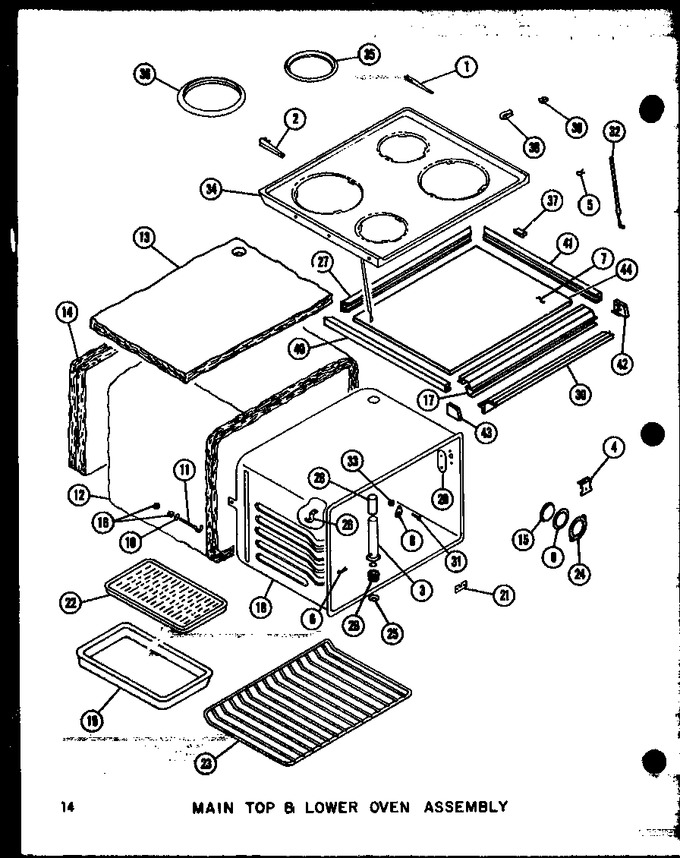

RCC-3 (BOM: P7340801M) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	R0179010	Bracket Assembly	Appelez-nous	-
2	R0179011	Bracket Assembly	Appelez-nous	-
3	R0174043	Tube, Oven Vent	Appelez-nous	-
4	R0191033	Bracket, Broiler Element	Appelez-nous	-
5	R0191034	Pin, Support Rod	Appelez-nous	-
6	R0191035	Cotter Pin	Appelez-nous	-
8	R0178729	Cover, Rotisserie	Appelez-nous	-
9	R0182042	Gasket-oven Lens	Appelez-nous	-
10	R0190021	Washer	Appelez-nous	-
11	R0191036	Hook Bolt	Appelez-nous	-
12	R0196018	Insulation, Oven Wrap	Appelez-nous	-
13	R0196019	Insulation,wrapper	Appelez-nous	-
14	R0196020	Insulation,wrapper	Appelez-nous	-
15	R0183033	Lens	Appelez-nous	-
16	R0189012	Hex Nut No.10-32 Nickel	Appelez-nous	-
18	R0178731	Oven Shell Assy	Appelez-nous	-
19	4396923	Broiler Pan Set (Replaces: R0178732)		Immediately	$ 52.04
20	R0178733	Retainer Plate	Appelez-nous	-
21	R0178734	Plate	Appelez-nous	-
22	4396923	Broiler Pan Set (Replaces: R0180035)		Immediately	$ 52.04
23	WP314763J	Rack,oven (Replaces: R0178735)			$ 70.11
24	R0178736	Retainer, Oven Light Lens	Appelez-nous	-
25	R0178737	Retaining Ring	Appelez-nous	-
26	R0179012	Bracket, Thermostat Bulb	Appelez-nous	-
28	R0174045	Shield-vent Tube	Appelez-nous	-
29	R0183034	Smoke Eliminator Catalyst	Appelez-nous	-
31	R0187013	No.10-24 Bolt Cover Plate	Appelez-nous	-
32	R0178739	Support, Maintop	Appelez-nous	-
33	M0282009	Nut, 10-24 Hex Keps (Replaces: R0189013)			$ 12.06
34	R0178906	Side Panel Kit - Gold	Appelez-nous	-
34	R0178740	Main Top, White	Appelez-nous	-
34	R0178902	Main Top-g	Appelez-nous	-
34	R0178904	Main Top-av	Appelez-nous	-
34	R0178903	Main Top, Almond	Appelez-nous	-
35	WPW10196406	Bowl, Drip (6`` W/hole-chr) (Replaces: R0179033)		Immediately	$ 12.05
36	WPW10196405	Bowl, Burner 8`` (chrome) (Replaces: R0179034)		Immediately	$ 15.56
38	R0191039	Wire Clamp	Appelez-nous	-
39	R0189014	Nut, Type ``u``	Appelez-nous	-
