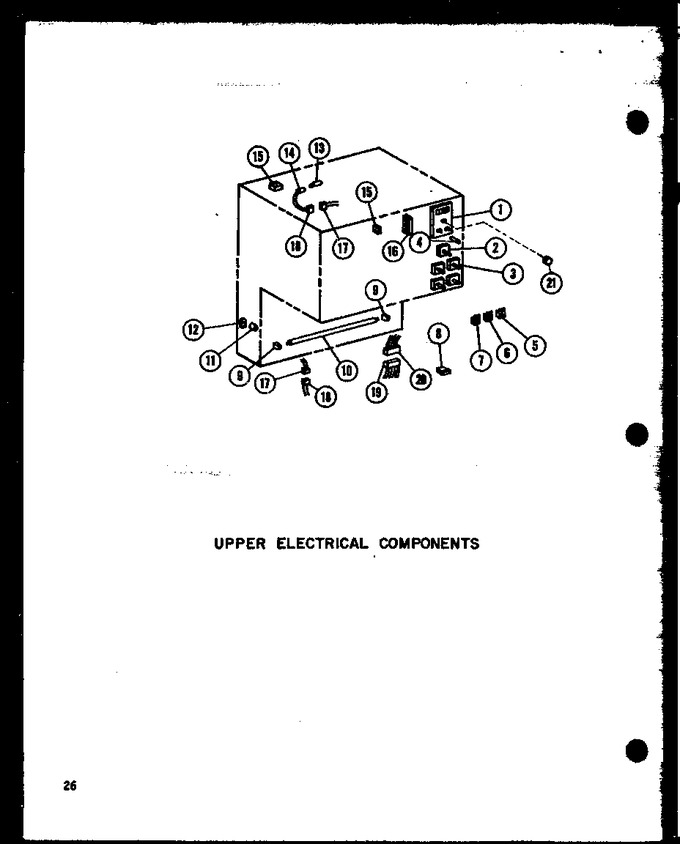

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0168005 | Clock Automatic |
|
- | |||||
| 2 | R0161009 | Lower Oven Thermostat |
|
- | |||||
| 3 | R0163018 | Switch, Infinite |
|
- | |||||
| 4 | R0165008 | Indicator Light |
|
- | |||||
| 5 | R0163019 | Switch, Rocker |
|
- | |||||
| 6 | R0163020 | Switch, Rocker |
|
- | |||||
| 7 | R0163021 | Rocker Switch, Timed/manual |
|
- | |||||
| 8 | R0165009 | Indicator Light |
|
- | |||||
| 9 | R0167092 | Kit, Flor.light Socket |
|
- | |||||
| 10 | WP95292 | Lamp, Fluorescent (Replaces: R0165010) |
|
Immediately | $ 121.45 | ||||
| 11 | R0167093 | Starter, Flourescent |
|
- | |||||
| 12 | R0167094 | Socket, Starter |
|
- | |||||
| 13 | A3167501 | Bulb Q |
|
$ 28.47 | |||||
| 14 | R0167096 | Socket Assy, Oven Lamp |
|
- | |||||
| 15 | R0164107 | Receptacle |
|
- | |||||
| 16 | R0167097 | Terminal Block |
|
- | |||||
| 17 | R0164108 | Receptacle, Disconnect, 3 Pin |
|
- | |||||
| 18 | R0164109 | Plug, Probe Disconnect |
|
- | |||||
| 19 | R0164110 | Plug, Disconnect, 8 Pin |
|
- | |||||
| 20 | R0164111 | Receptacle, Disconnect (8 Pin) |
|
- | |||||
| 21 | R0181076 | Knob-clock |
|
- |
