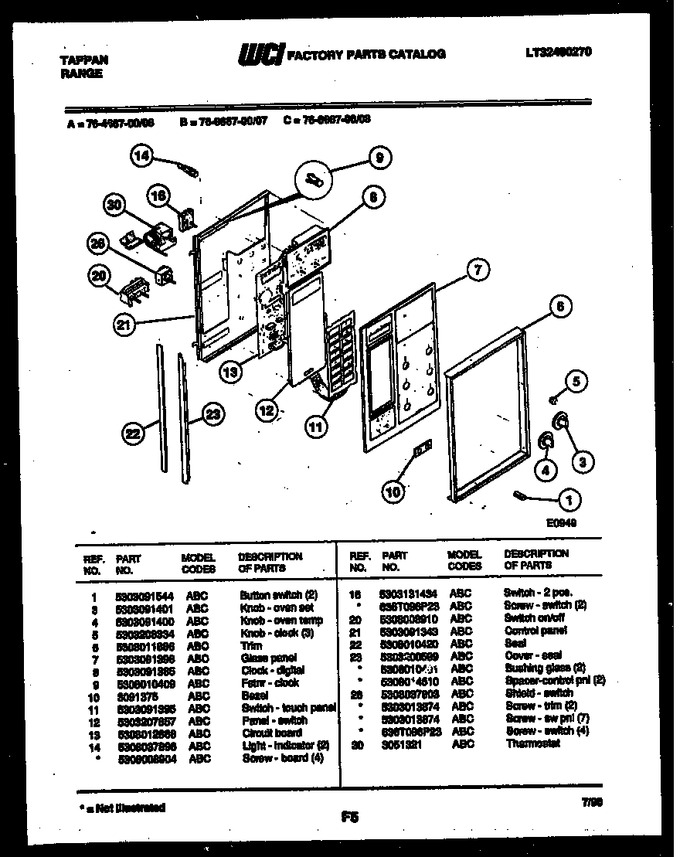

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303091544		Button Switch (2)		Appelez-nous	-
3	5303091401		Knob - Oven Set		Appelez-nous	-
4	5303091400		Knob - Oven Temp		Appelez-nous	-
5	5303208334		Knob-clock (3)		Appelez-nous	-
6	5308011886		Trim		Appelez-nous	-
7	5303091398		Glass Panel		Appelez-nous	-
8	5303091385		Clock - Digital		Appelez-nous	-
9	5308010409		Fstnr - Clock		Appelez-nous	-
10	3091375		Bezel		Appelez-nous	-
11	5303091395		Switch - Touch Panel		Appelez-nous	-
12	5303207857		Panel - Switch		Appelez-nous	-
13	5308012868		Circuit Board		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
16	5303131434		Switch - 2 Pos.		Appelez-nous	-
20	5308008910		Switch On/off		Appelez-nous	-
21	5303091343		Control Panel		Appelez-nous	-
22	5308010420		Seal		Appelez-nous	-
23	5303200599		Cover - Seal		Appelez-nous	-
26	5308037903		Shield - Switch		Appelez-nous	-
30	3051321		Thermostat		Appelez-nous	-
14A	5308008904		Screw - Board (4)		Appelez-nous	-
16A	636T096P23		Screw Switch (2)		Appelez-nous	-
23A	5308010401		Bushing Glass (2) (non-illustrated)		Appelez-nous	-
23B	5308014510		Spacer-control Pnl (2) (non-illustrated)		Appelez-nous	-
26A	5303013874		Screw - Trim (2) (non-illustrated)				$ 5.04
26B	5303013874		Screw - Sw Pnl (7) (non-illustrated)				$ 5.04
26C	636T096P23		Screw - Switch (4) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
