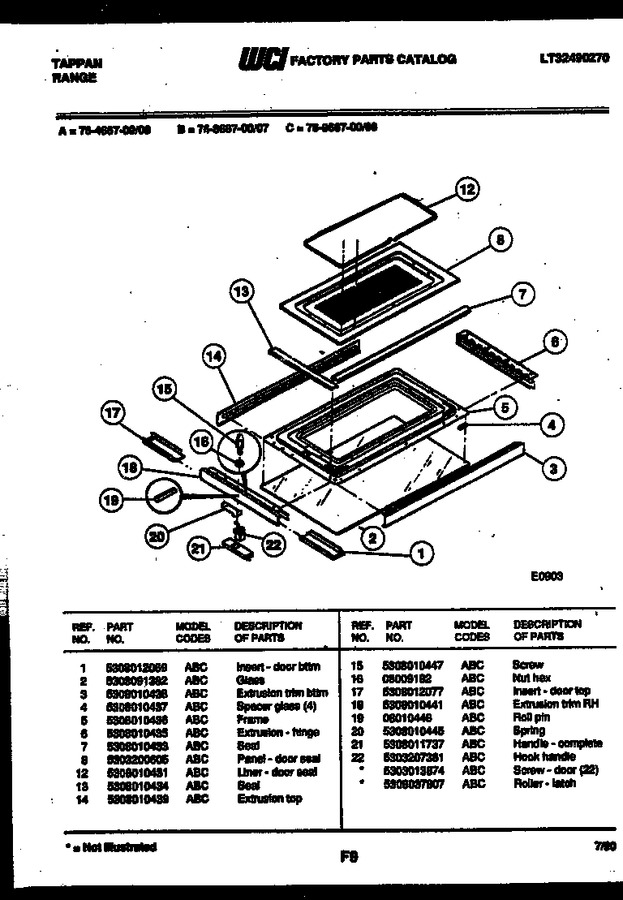

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012069 | Insert - Door Bttm |
|
- | |||||
| 2 | 5303091382 | Glass |
|
- | |||||
| 3 | 5308010438 | Extrusion Trim Bttm |
|
- | |||||
| 4 | 5308010437 | Spacer Glass (4) |
|
- | |||||
| 5 | 5308010436 | Frame |
|
- | |||||
| 6 | 5308010435 | Extrusion - Hinge |
|
- | |||||
| 7 | 5308010433 | Seal |
|
- | |||||
| 8 | 5303200605 | Panel - Door Seal |
|
- | |||||
| 12 | 5308010431 | Liner - Door Seal |
|
- | |||||
| 13 | 5308010434 | Seal |
|
- | |||||
| 14 | 5308010439 | Extrusion Top |
|
- | |||||
| 15 | 5308010447 | Screw |
|
- | |||||
| 16 | 08009182 | Nut Hex |
|
- | |||||
| 17 | 5308012077 | Insert - Door Top |
|
- | |||||
| 18 | 5308010441 | Extrusion Trim Rh |
|
- | |||||
| 19 | 08010446 | Roll Pin |
|
- | |||||
| 20 | 5308010445 | Spring |
|
- | |||||
| 21 | 5308011737 | Handle - Complete |
|
- | |||||
| 22 | 5303207361 | Hook Handle |
|
- | |||||
| *38917 | 5303013874 | Screw - Door (22) |
|
$ 5.04 | |||||
| *38917 | 5308037907 | Roller - Latch |
|
- |
