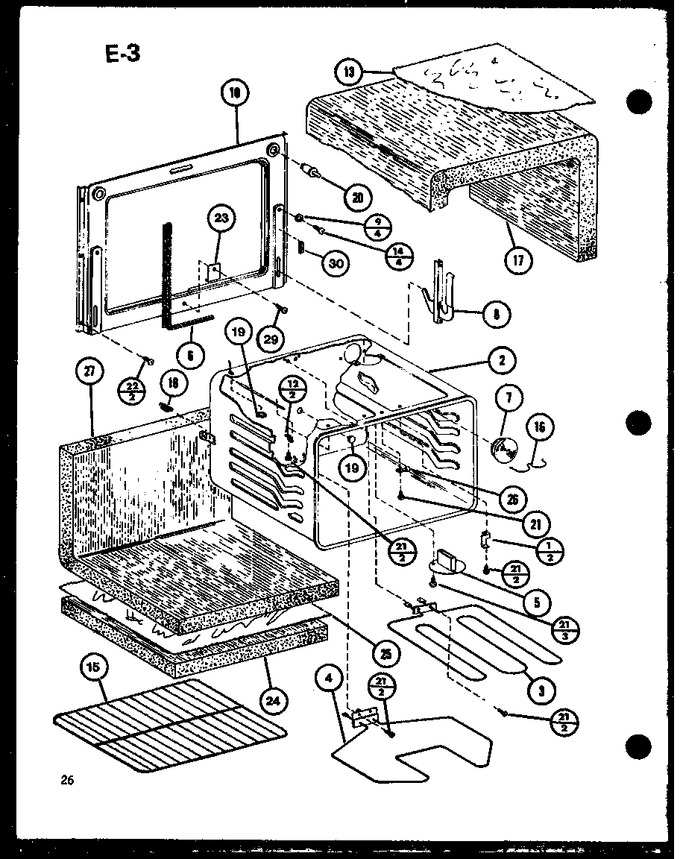

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A4416501 | Supt-broiler El |
|
- | |||||
| 2 | D8510503 | Oven Cavity |
|
- | |||||
| 3 | D8528901 | Element,broil |
|
- | |||||
| 4 | A4430002 | Bake Element |
|
- | |||||
| 5 | C2704801 | Assy, Vent |
|
- | |||||
| 6 | B5002602 | Gasket |
|
- | |||||
| 7 | B5003301 | Globe-lamp |
|
- | |||||
| 8 | D8559001 | Door Hinge Assy |
|
- | |||||
| 9 | M0271202 | Washer Padded |
|
- | |||||
| 10 | D8509807 | Panel Front Cavity |
|
- | |||||
| 12 | A4407801 | Retainer-thermo |
|
- | |||||
| 13 | A4400603 | Foil-alum |
|
- | |||||
| 14 | M0203342 | Screw |
|
- | |||||
| 15 | D8510001 | Rack 15 11/32`` W X 22 29/32`` L |
|
- | |||||
| 16 | A4407001 | Retainer-lamp |
|
- | |||||
| 17 | B5003003 | Insulation |
|
- | |||||
| 18 | A4407101 | Spring |
|
- | |||||
| 19 | M0311101 | Plug Button |
|
- | |||||
| 20 | C2706501 | Switch, Oven Dr |
|
- | |||||
| 21 | M0237117 | Screw |
|
- | |||||
| 22 | M0217224 | Screw |
|
- | |||||
| 23 | A4427901 | Retainer-gasket K |
|
- | |||||
| 24 | B5002302 | Insulation |
|
- | |||||
| 25 | A4400601 | Foil Aluminum K |
|
- | |||||
| 26 | B5003201 | Clip-oven Cavity |
|
- | |||||
| 27 | B5002403 | Insulation |
|
- | |||||
| 29 | W11233072 | Use M0214931 (Replaces: M0211531) |
|
Immediately | $ 12.62 | ||||
| 30 | A4402201 | Bumper |
|
- |
