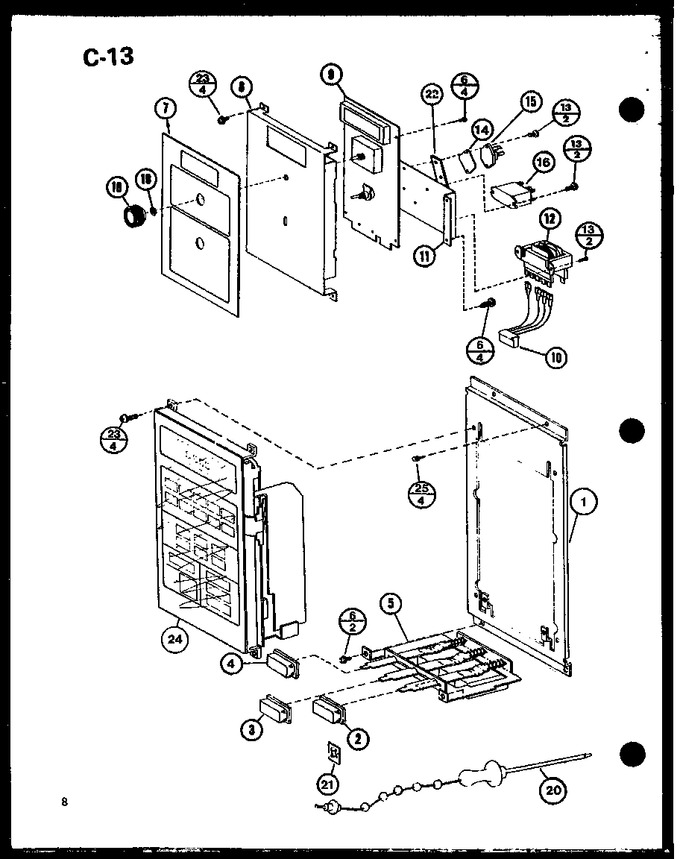

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8913001		Brkt, Support		Appelez-nous	-
2	C8743107		Button (start) K		Appelez-nous	-
3	C8743108		Button (stop) K		Appelez-nous	-
4	C8743109		Button (light)		Appelez-nous	-
5	C8787803		Switch Ssl K		Appelez-nous	-
6	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
7	C8906801		Overlay Timer		Appelez-nous	-
8	C8906602		Pntd Timer Mtg Plate		Appelez-nous	-
9	R0163061		Rot-dig-mod Kit		Appelez-nous	-
10	C8919801		Wiring Harness		Appelez-nous	-
11	B8350001		Bracket Timer		Appelez-nous	-
12	C8923501		Transformer, Control		Appelez-nous	-
13	M0234016		Screw		Appelez-nous	-
14	B8337201		Silicone Pad		Appelez-nous	-
15	12QBP0508		Kit, Triac Assy   (Replaces: R0157373)				$ 27.14
16	C8906701		Relay		Appelez-nous	-
18	C8906901		Knob Control K		Appelez-nous	-
19	M0281404		Nut, Switch		Appelez-nous	-
20	C8821503		Temp Probe		Appelez-nous	-
21	M0288701		Speed Nut ``u`` Type- Nameplate		Appelez-nous	-
22	A1040601		Heat Sink, Triac		Appelez-nous	-
23	M0213815		Screw		Appelez-nous	-
25	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
