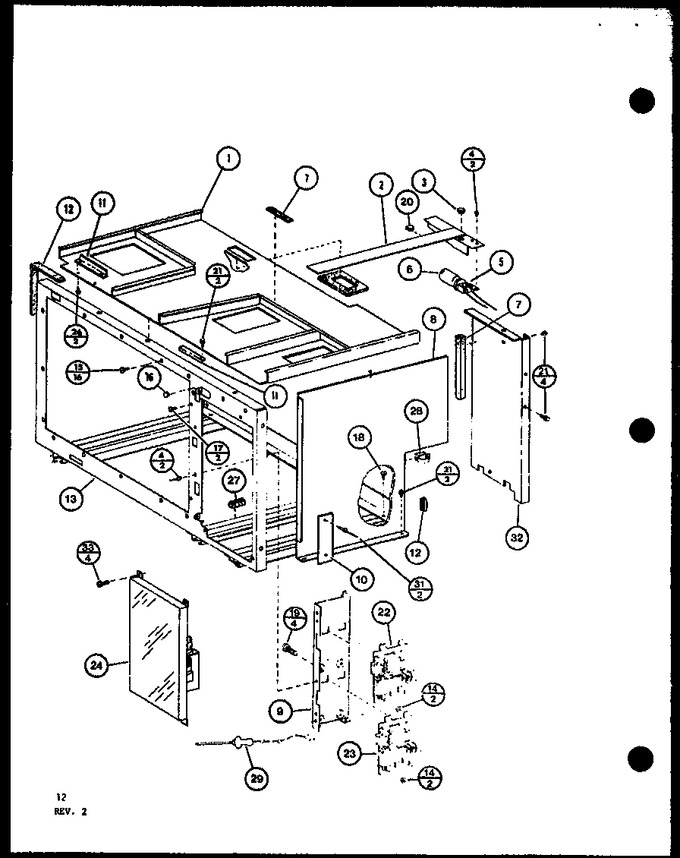

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D8552702		Lower Top Weld		Appelez-nous	-
2	D8529903		Light Holder		Appelez-nous	-
3	A4554808		Snap Bushing		Appelez-nous	-
4	A4539601		Pop Rivet		Appelez-nous	-
5	B5691205		Socket-oven Light		Appelez-nous	-
6	A3167501		Bulb Q				$ 28.47
7	A3030309		Gasket (per Foot)		Appelez-nous	-
8	D8529602		Divider		Appelez-nous	-
9	D7667301		Bracket, Switch		Appelez-nous	-
10	B5020701		Barrier-thermostat		Appelez-nous	-
11	A4423902		Shield Ptd		Appelez-nous	-
12	A3030303		Gasket (per Foot)		Appelez-nous	-
13	D7353126		Yoke Weld		Appelez-nous	-
14	M0282005		Nut K				$ 7.07
15	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
16	A1511502		Bumper		Appelez-nous	-
17	WP488234		Screw   (Replaces: M0234422)				$ 6.07
18	M0220114		Screw		Appelez-nous	-
19	M0293501		Stud Self Clinching		Appelez-nous	-
20	M0114901		Clip		Appelez-nous	-
21	M0217204		Screw		Appelez-nous	-
22	C8889906		Interlock Switch		Appelez-nous	-
23	C8889909		Interlock Switch		Appelez-nous	-
24	R0163092		Timer, Electronic (20 Series)		Appelez-nous	-
26	M0232702		Screw		Appelez-nous	-
27	A3030340		Gasket-per Ft		Appelez-nous	-
28	M0110503		Clip		Appelez-nous	-
29	C8821503		Temp Probe		Appelez-nous	-
31	A4539603		Pop Rivet		Appelez-nous	-
32	C2730502		Panel Inner Back		Appelez-nous	-
33	M0213815		Screw		Appelez-nous	-
NI	A3030316		Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
