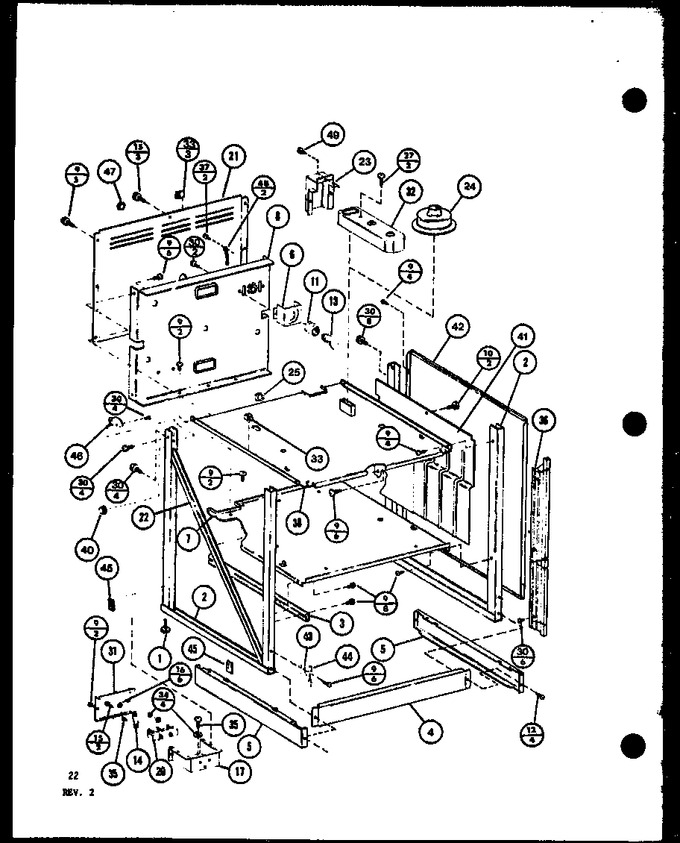

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A4400801 | Foot |
|
- | |||||
| 1 | A4400802 | Foot, Level, Rear |
|
- | |||||
| 2 | D8504108 | Side Frame Weld |
|
- | |||||
| 3 | C2705301 | Glide |
|
- | |||||
| 4 | C2706705 | Panel |
|
- | |||||
| 5 | C2706603 | Kick Panel, Side |
|
- | |||||
| 6 | B5000601 | Reflector |
|
- | |||||
| 7 | D8510401 | Retainer |
|
- | |||||
| 8 | D8573201 | Retainer Rear Insul |
|
- | |||||
| 9 | M0217224 | Screw |
|
- | |||||
| 10 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 11 | A4400701 | Socket, Oven Light |
|
- | |||||
| 12 | M0218625 | Screw |
|
- | |||||
| 13 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 14 | A4406901 | Strap-grd |
|
- | |||||
| 15 | M0213145 | Screw |
|
- | |||||
| 16 | M0282402 | Usr 0041847 |
|
- | |||||
| 17 | C2705002 | Brkt Term Block |
|
- | |||||
| 20 | WP8203546 | Terminal Block (Replaces: B5003401) |
|
Immediately | $ 27.12 | ||||
| 21 | D8509505 | Cover, Lower Lead |
|
- | |||||
| 22 | D8530901 | Stiffener |
|
- | |||||
| 24 | B5012301 | Tube-oven Vent |
|
- | |||||
| 25 | M0580005 | Grommet |
|
- | |||||
| 27 | M0211025 | Screw |
|
- | |||||
| 30 | W11233072 | Use M0214931 (Replaces: M0211531) |
|
Immediately | $ 12.62 | ||||
| 30 | M0211543 | Screw |
|
- | |||||
| 31 | B5003501 | Cover |
|
- | |||||
| 33 | M0110503 | Clip |
|
- | |||||
| 34 | M0270001 | Washer |
|
- | |||||
| 35 | M0227817 | Screw |
|
- | |||||
| 36 | D8509302 | Trim |
|
- | |||||
| 36 | D8509202 | Trim-side Lh |
|
- | |||||
| 37 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 38 | D8506203 | Retainer-top Insul |
|
- | |||||
| 40 | A1511501 | Bumper |
|
- | |||||
| 41 | D8506801 | Retainer-insul L |
|
- | |||||
| 41 | D8506701 | Retainer-insul R |
|
- | |||||
| 42 | D8501115 | Side Panel |
|
- | |||||
| 42 | D8501116 | Side Panel L |
|
- | |||||
| 42 | D8501112 | Side Panel -w |
|
- | |||||
| 43 | B5010201 | Brkt-side Pnl Rh |
|
- | |||||
| 43 | B5010202 | Brkt-side Pnl Lh |
|
- | |||||
| 44 | A4401502 | Bumper |
|
- | |||||
| 45 | B5718912 | Gasket |
|
- | |||||
| 46 | B5029201 | Support Range Top |
|
- | |||||
| 47 | M0311103 | Plug K |
|
- | |||||
| 48 | M0585301 | Clamp Cable |
|
- | |||||
| 49 | M0232702 | Screw |
|
- |
