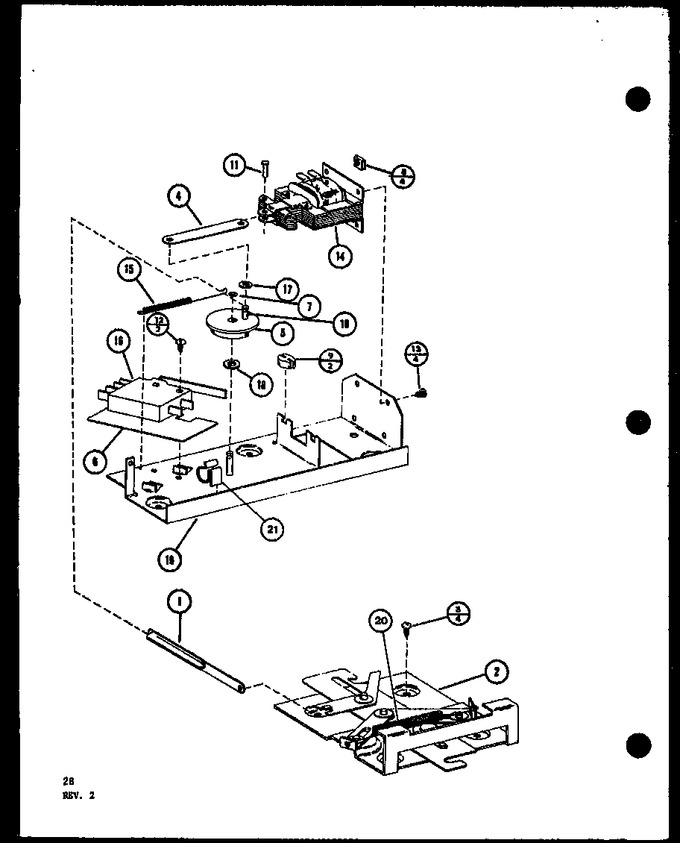

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B5004501 | Arm |
|
- | |||||
| 2 | D8508301 | Assy, Door Latch (10442001) |
|
- | |||||
| 3 | M0217224 | Screw |
|
- | |||||
| 4 | A4405801 | Arm-actuator |
|
- | |||||
| 5 | B5004201 | Cam, Lock Solenoid |
|
- | |||||
| 6 | A4405601 | Insulator-switch |
|
- | |||||
| 7 | M0287901 | Speed Nut A- K |
|
- | |||||
| 8 | M0119701 | Clip |
|
- | |||||
| 9 | A4405901 | Pad |
|
- | |||||
| 10 | A4405701 | Pin-grooved |
|
- | |||||
| 11 | M0010212 | Pop Rivet |
|
- | |||||
| 12 | M0227520 | Screw |
|
- | |||||
| 13 | WP74004005 | Screw (Replaces: M0201416) |
|
$ 6.95 | |||||
| 14 | C2711701 | Solenoid, Lock |
|
- | |||||
| 15 | A4405501 | Spring, Solenoid |
|
- | |||||
| 16 | B5004402 | Switch, Limit |
|
- | |||||
| 17 | M0270501 | Washer |
|
- | |||||
| 18 | M0270515 | Washer |
|
- | |||||
| 19 | C2705401 | Assy, Latch Solenoid |
|
- | |||||
| 20 | A4406002 | Spring, Door Latch |
|
- | |||||
| 21 | M0110503 | Clip |
|
- | |||||
| NI | R0195023 | Hi Temp Lube |
|
- |
