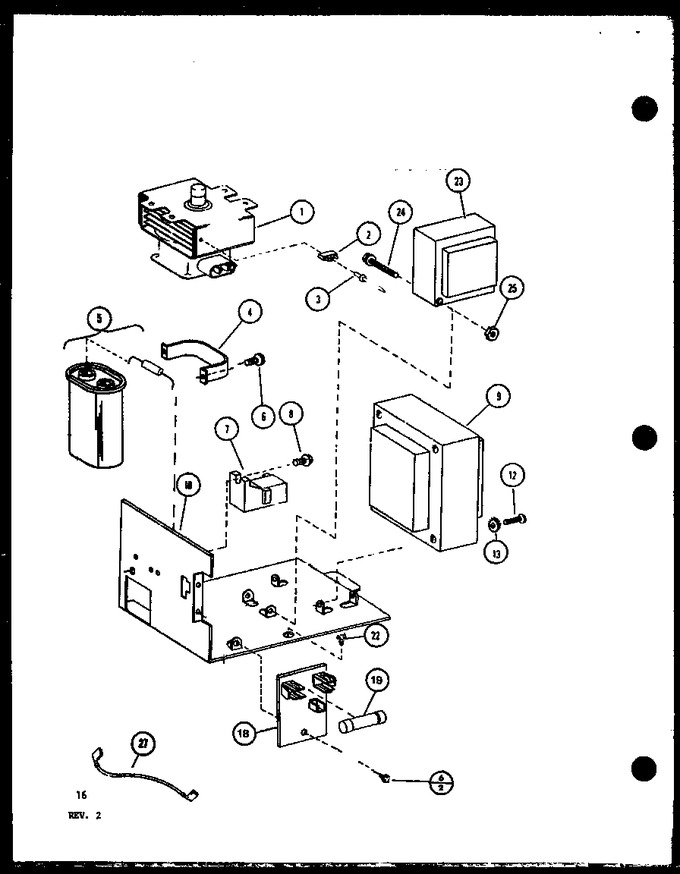

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8761711 | Magnetron |
|
- | |||||
| 2 | B5795304 | Fuse, Thermal |
|
- | |||||
| 3 | A4539602 | Pop Rivet |
|
- | |||||
| 4 | A3257002 | Strap-capacitor |
|
- | |||||
| 5 | 59001651 | Capacitor (Replaces: D8547901) |
|
$ 43.15 | |||||
| 6 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 7 | B8329802 | Kit, Diode |
|
- | |||||
| 8 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 9 | D7391405 | Transformer K |
|
- | |||||
| 10 | D7442104 | Xfmr Mtg Plate |
|
- | |||||
| 12 | M0254452 | Screw |
|
- | |||||
| 13 | M0272805 | Lock Washer |
|
- | |||||
| 18 | B8352301 | Fuse Board |
|
- | |||||
| 19 | M0850508 | Fuse 15a |
|
- | |||||
| 22 | YM0258229 | Sems Fastener |
|
- | |||||
| 24 | M0253509 | Screw |
|
- | |||||
| 25 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 27 | D7292672 | Jumper Wire |
|
- | |||||
| 27 | D7292655 | Jumper Wire |
|
- | |||||
| 27 | D7292676 | Jumper Wire |
|
- | |||||
| 27 | D7384635 | Wire Jumper |
|
- |
