02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

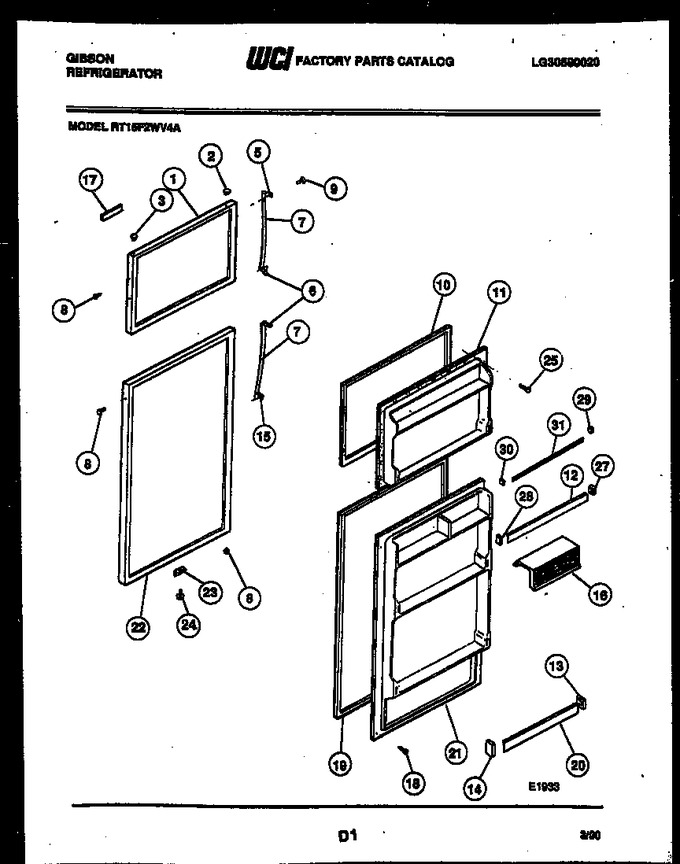

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916740		Panel-freezer-avoc		Appelez-nous	-
1	5303916741		Panel-freezer-wheat		Appelez-nous	-
1	5303916742		Panel-freezer-coffee		Appelez-nous	-
1	5303916743		Panel-freezer-almond		Appelez-nous	-
1	5303916739		Panel-freezer-white		Appelez-nous	-
2	5303001657		Plug Button - Coffee (2)		Appelez-nous	-
2	5308000176		Plug Button - Wheat (2)		Appelez-nous	-
2	5308000134		Plug Button, White (2)				$ 5.62
2	5308000175		Plug Button, Avoc (2)		Appelez-nous	-
2	5303001308		Plug Button, Almd (2)		Appelez-nous	-
3	3206153		Bearing-hinge (8)		Appelez-nous	-
5	5303001297		Handle End Top				$ 70.22
6	5303001296		Handle End, (2)				$ 86.36
7	5303200545		Handle-frzr Door		Appelez-nous	-
8	5308000179		Plug Button-avoc		Appelez-nous	-
8	5308000180		Plug Button - Wheat		Appelez-nous	-
8	5308000178		Plug Button - Coffee		Appelez-nous	-
8	5308000181		Plug Button-almd		Appelez-nous	-
8	240494001		Plug-button, White   (Replaces: 5308000090)			Immediately	$ 18.20
9	5308011745		Screw				$ 10.38
10	5303001399		Gasket-freezer		Appelez-nous	-
11	5303209049		Inner Panel-freezer		Appelez-nous	-
12	3001539		Rack-freezer Lower		Appelez-nous	-
13	5303209047		Support-rack-rh (2)		Appelez-nous	-
14	5303209048		Support-rack-lh (2)		Appelez-nous	-
15	5300179801		Handle-end Bottom		Appelez-nous	-
16	5303209076		Door-dairy		Appelez-nous	-
17	5317511702		Holder-nameplate		Appelez-nous	-
18	218843801		Screw   (Replaces: 5303001001)				$ 14.41
19	218730603		Gasket-refrigerator   (Replaces: 5303001517)				$ 62.07
20	5303209075		Rack-refrigerator (2)		Appelez-nous	-
21	5303209042		Inner Panel-refrigerator		Appelez-nous	-
22	5303916734		Panel-refr-white		Appelez-nous	-
22	5303916738		Panel-refr-almond		Appelez-nous	-
22	5303916736		Panel-refr-wheat		Appelez-nous	-
22	5303916735		Panel-refr-avoc		Appelez-nous	-
22	5303916737		Panel-refr-coffee		Appelez-nous	-
23	5308000255		Door Stop (2)				$ 42.20
24	5308011745		Screw				$ 10.38
25	218843801		Screw   (Replaces: 5303001001)				$ 14.41
27	5303209051		Support-rack-rh		Appelez-nous	-
28	5303209053		Support-rack-lh		Appelez-nous	-
29	5303209055		Support-rack-rh		Appelez-nous	-
30	5303209056		Support-rack-lh		Appelez-nous	-
31	5303209074		Rack-frzr-upper		Appelez-nous	-
*31302	5303007739		Insulation - Fiberglass - Bulk		Appelez-nous	-
16A	5303209043		Trim-dairy Door		Appelez-nous	-
17A	5315340760		Tape-double Faced (non-illustrated)		Appelez-nous	-
17B	5318837802		Label-nameplate (non-illustrated)		Appelez-nous	-
