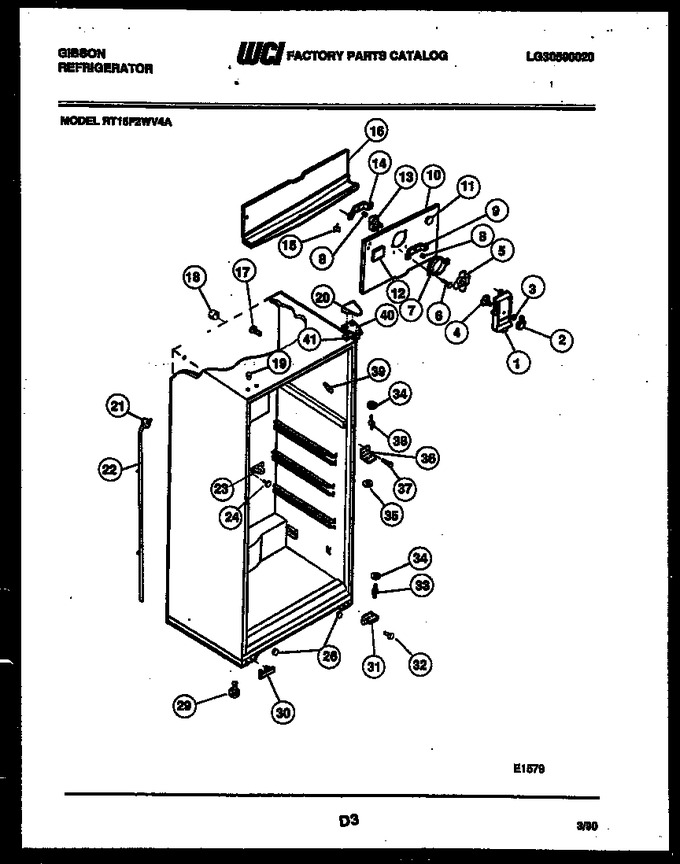

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303209040		Cover-fan		Appelez-nous	-
2	5308000081		Knob - Damper Control				$ 36.02
3	5303001028		Push-nut		Appelez-nous	-
4	3206110		Damper-fan				$ 53.08
5	5308000010		Fan Blade			Immediately	$ 49.03
6	218843801		Screw   (Replaces: 5303001001)				$ 14.41
7	5308000124		Orifice Ring				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303001226		Bracket-front		Appelez-nous	-
10	3206119		Cover-evaporator Coil		Appelez-nous	-
11	5303203044		Plug-short Test Hole		Appelez-nous	-
12	5308013636		Plug, Decorative		Appelez-nous	-
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303001227		Bracket-rear		Appelez-nous	-
15	5308000107		Bracket-connector				$ 33.23
16	3206146		Drain Trough		Appelez-nous	-
17	5308000097		Support, Coil Cover (2)		Appelez-nous	-
18	5303001198		Tube-rubber		Appelez-nous	-
19	5303001388		Plug-upr Hinge Holes-white (2)				$ 2.60
19	5303001677		Plug-upr Hinge Holes-avoc (2)		Appelez-nous	-
19	5303001678		Plug-upr Hinge Holes-wheat (2)		Appelez-nous	-
19	5303001679		Plug-upr Hinge Holes-coffee (2)		Appelez-nous	-
19	5303001389		Plug-upr Hinge Holes-almond (2)		Appelez-nous	-
20	3206105		Hinge Cover-almond				$ 60.90
20	3206101		Hinge Cover-white				$ 49.25
20	3206103		Hinge Cover-wheat		Appelez-nous	-
20	3206104		Hinge Cover-coffee		Appelez-nous	-
20	3206102		Hinge Cover-avoc		Appelez-nous	-
21	5308009755		Seal Ring-drain Tube		Appelez-nous	-
22	3206115		Drain-tube		Appelez-nous	-
23	5308000056		Spout-drain Tube				$ 11.66
24	5303001361		Push-pin Spout (2)		Appelez-nous	-
26	3206142		Button Plug (2)		Appelez-nous	-
29	3206141		Screw-leveling, (2)				$ 11.50
30	3206135		Cover-hinge Screws		Appelez-nous	-
31	3206136		Bracket-bottom Hinge		Appelez-nous	-
32	241710601		Screw   (Replaces: 5303001479)				$ 13.46
33	5303001321		Pin, Bottom Hinge				$ 17.25
34	5308000007		Washer-1/4 X 5/8 Od Nylon (3)		Appelez-nous	-
35	5308000186		Washer-5/16 X 5/8 Od Nylon			Immediately	$ 6.02
36	5303001369		Bracket- Center Hinge		Appelez-nous	-
37	3206134		Screw Hinge Mtg (2)		Appelez-nous	-
38	5308000184		Pin-center Hinge				$ 8.87
39	5303202337		Trim-cab Corner-avoc		Appelez-nous	-
39	5303202340		Trim-cab Corner-almd		Appelez-nous	-
39	5303202339		Trim-cab Corner-coffee		Appelez-nous	-
39	5303202336		Trim-cab Corner-white		Appelez-nous	-
39	5303202338		Trim-cab Corner-wheat		Appelez-nous	-
40	3206100		Hinge, Top		Appelez-nous	-
41	5303001037		Shim, Top Hinge				$ 12.39
*31314	5308012296		Tapping-plate (2)				$ 47.44
*31314	5308016571		Plug, Freezer Liner (3)				$ 4.79
10A	5308000126		Nut-``u`` Type (2)		Appelez-nous	-
10B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
15A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
1A	5303209069		Label-fan Cover (non-illustrated)		Appelez-nous	-
1B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
40A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
