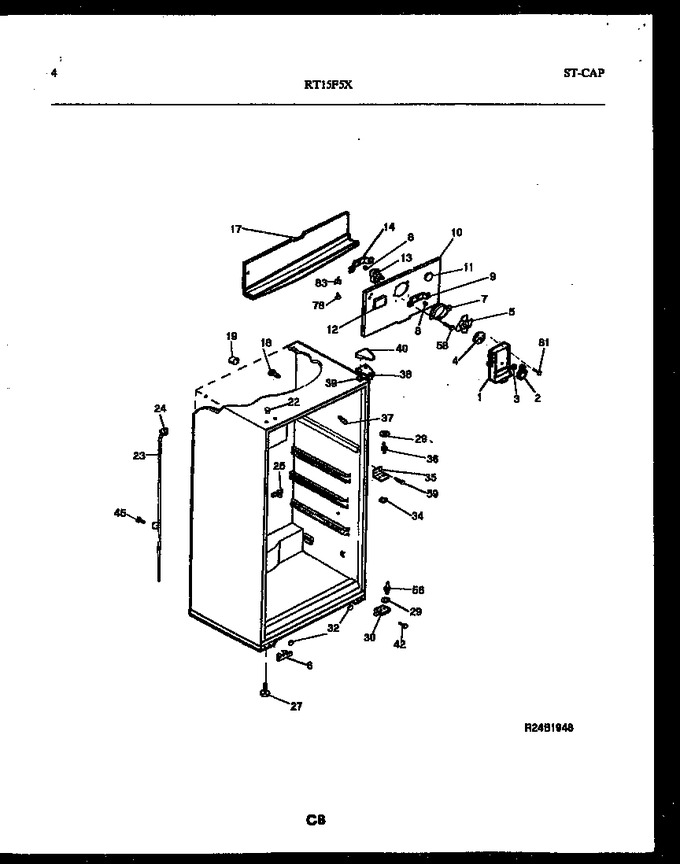

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303272512		Cover-fan		Appelez-nous	-
2	3206381		Knob - Damper Control		Appelez-nous	-
3	5303001028		Nut, Push		Appelez-nous	-
4	3206110		Damper-fan Cover				$ 53.08
5	5308000010		Fan Blade			Immediately	$ 49.03
6	3206135		Cover-lwr Hng Screw		Appelez-nous	-
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	3206119		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303272494		Plug-decorative, Ice Maker Hole		Appelez-nous	-
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	3206146		Trough-drain		Appelez-nous	-
18	5308000097		Support, Evap Cover, (2)		Appelez-nous	-
19	5303001198		Tube-rubber		Appelez-nous	-
22	5303001388		Plug-button, White, Upr Hinge Holes				$ 2.60
23	5303269702		Tube-drain, W/seal Ring				$ 104.63
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5308000056		Spout-drain Tube				$ 11.66
27	3206141		Screw-leveling				$ 11.50
29	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
30	3206136		Bracket-lower Hinge		Appelez-nous	-
32	3206142		Plug-button, Cabinet Base, (2)		Appelez-nous	-
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	5303001369		Bracket-ctr Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202336		Trim, Cabinet Corner, White, (4)		Appelez-nous	-
10A	5303209636		Screw-coil Cover, Phl Hd Spc Trus, 8-15a X 5/8 (non-illustrated)		Appelez-nous	-
10B	5303209814		Nut, ``u`` Type, No. 8(a), Coil Cover, (2) (non Illustrated)		Appelez-nous	-
1A	5303272493		Label-fan Cover (cover-fan Cover) (non-illustrated)		Appelez-nous	-
25A	5303001361		Pin, Push, Drain Spout (2) (non-illustrated)		Appelez-nous	-
