SELECT A DIAGRAM

01 - Blower & Cavity


02 - Door


03 - Electrical Components


04 - Outer Case


05 - Supplemental Information


06 - Wiring Information

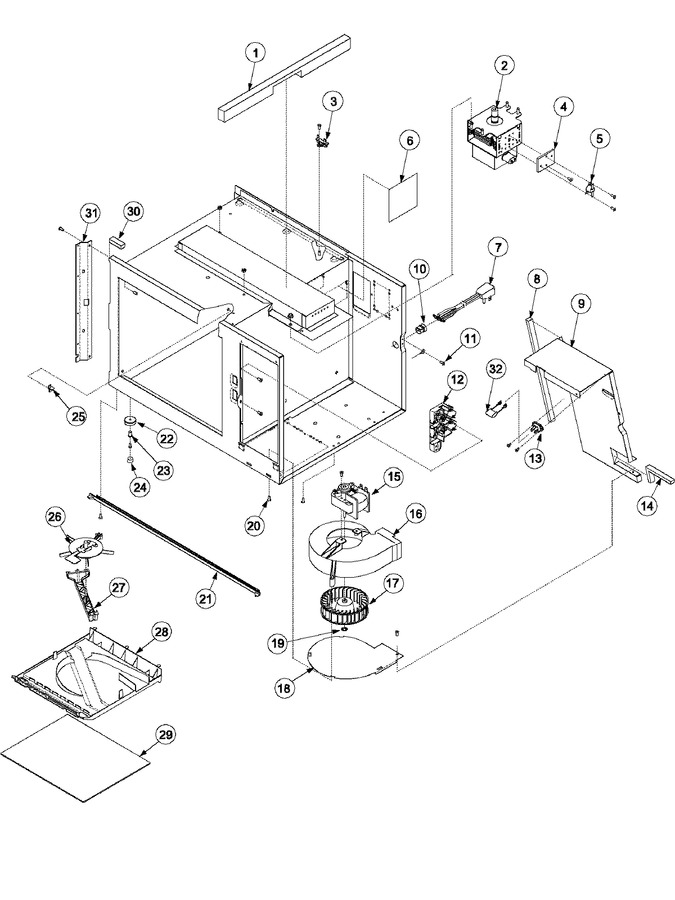

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8369901		Gasket, Oven Top		Appelez-nous	-
2	10489401		Magnetron		Appelez-nous	-
3	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
3	B5795305		Fuse, Thermal		Appelez-nous	-
4	M0229916		Screw T.c		Appelez-nous	-
4	B8380601		Plate, Thermal Cutout		Appelez-nous	-
5	M0229916		Screw T.c		Appelez-nous	-
5	B5684106		Thermal Protector		Appelez-nous	-
6	B8367701		Window, Oven Light		Appelez-nous	-
7	1731300208		Cord, Power		Appelez-nous	-
8	A3030302		Gasket		Appelez-nous	-
9	D7685413		Blower Partition,black E Ct		Appelez-nous	-
10	M0370003		Strain Relief		Appelez-nous	-
11	M0231717		Screw, Tf		Appelez-nous	-
12	12360506		Switch, Interlock		Appelez-nous	-
14	A3030302		Gasket		Appelez-nous	-
15	D7670306		Motor, Blower		Appelez-nous	-
15	M0213123		Screw		Appelez-nous	-
16	D7684601		Scroll, Blower		Appelez-nous	-
17	C8793501		Blower Wheel		Appelez-nous	-
18	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
18	C8942501		Brkt Scroll		Appelez-nous	-
19	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
20	M0230017		Screw,tc		Appelez-nous	-
21	M0231617		Screw,tf		Appelez-nous	-
21	12667301		Trim,oc		Appelez-nous	-
22	C8960601		Foot, Outer Case		Appelez-nous	-
23	M0213147		Screw		Appelez-nous	-
23	M0571201		Eyelet		Appelez-nous	-
24	C8965404		Plug Button		Appelez-nous	-
25	B8374901		Support, Shelf		Appelez-nous	-
26	C8943002Q		Assy, Antenna				$ 10.85
27	D7685505		Cradle, Antenna		Appelez-nous	-
28	D7692501		Grease Shield		Appelez-nous	-
29	C8936902		Tray-glass Floor		Appelez-nous	-
29	W10841140		Sealer   (Replaces: M0275598)			Immediately	$ 24.92
30	A3030301		Gasket (inch)		Appelez-nous	-
31	C8935903		Brkt,hinge Support		Appelez-nous	-
31	M0231717		Screw, Tf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
