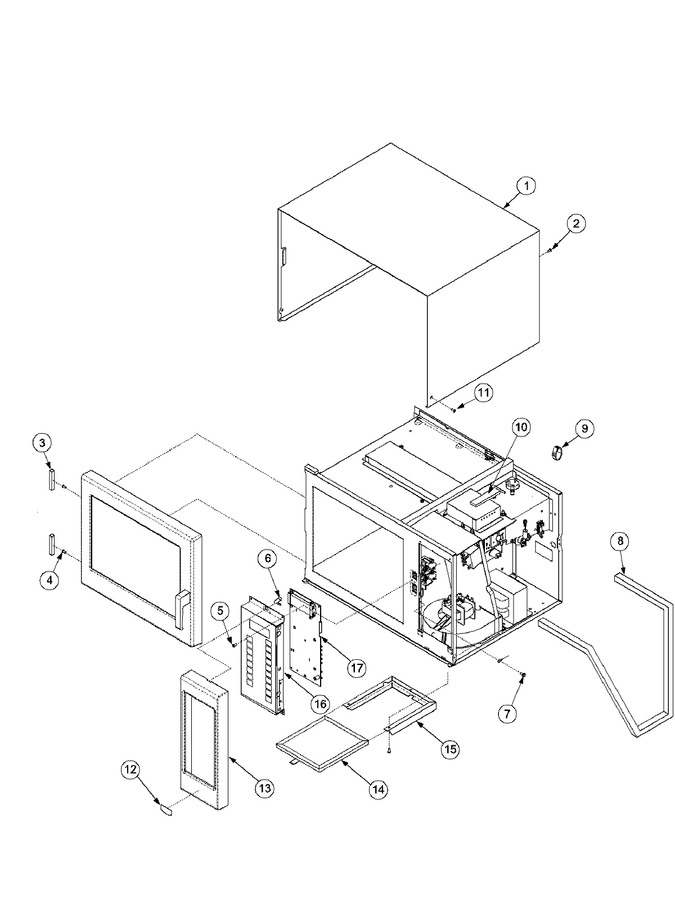

| 1 | D7684903 | Wrapper |
|
- | |||||
| 2 | M0231717 | Screw, Tf |
|
- | |||||
| 3 | A3263904 | Gasket |
|
- | |||||
| 4 | WP12990527 | Screw (Replaces: M0229716) |
|
Immediately | $ 7.15 | ||||
| 5 | M0231717 | Screw, Tf |
|
- | |||||
| 6 | B8379401 | Clip |
|
- | |||||
| 7 | M0231717 | Screw, Tf |
|
- | |||||
| 8 | A3263907 | Gasket - Each |
|
- | |||||
| 9 | M0118705 | Clip, Guide |
|
- | |||||
| 10 | 59001026 | Sealer, Rtv |
|
- | |||||
| 11 | M0249619 | Screw, T F |
|
- | |||||
| 12 | 59001028 | Label, Rcs10mpsed |
|
- | |||||
| 13 | 12667401 | Escutcheon,side |
|
- | |||||
| 14 | 10169101Q | Filter, Preform |
|
- | |||||
| 15 | D7740902 | Bracket |
|
- | |||||
| 16 | R9900592 | Assy, Touch Panel |
|
- | |||||
| 17 | R0131385 | Kit,hv/lv Board |
|
- |
