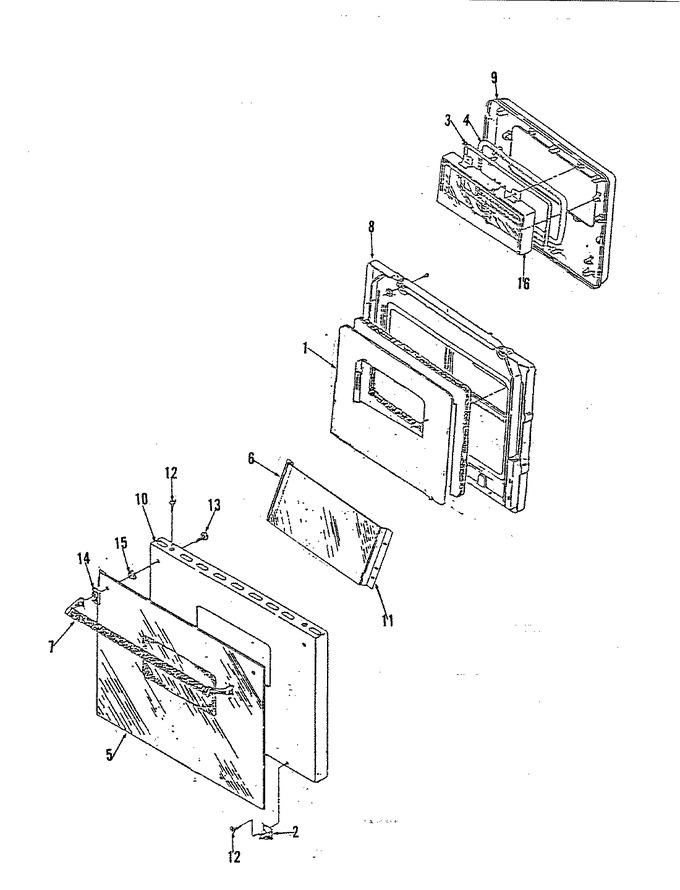

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F093-51 | Baffle | 01 |
|
- | ||||
| 1 | 1784200 | Bumper | 01 |
|
- | ||||
| 2 | 3819F010-70 | Clip, Glass Retainer (blk) | 01 |
|
- | ||||
| 2 | 8270P010-60 | Tape, Retainer Clip | 01 |
|
- | ||||
| 3 | 7706P177-60 | Frame, Window | 01 |
|
- | ||||
| 4 | 7902P101-60 | Glass, Window Outer | 01 |
|
- | ||||
| 4 | 1313269 | Gasket | 01 |
|
- | ||||
| 5 | 7902P120-60 | Glass, Outer (black) | 01 |
|
- | ||||
| 6 | 7902P135-60 | Glass, Clear | 01 |
|
- | ||||
| 7 | 7701P025-60 | Handle, Oven Door | 01 |
|
- | ||||
| 8 | 2402W128-15 | Lining | 01 |
|
- | ||||
| 8 | 2422H082 | Lining, Ovn Door | 09 |
|
- | ||||
| 9 | 2410W027-12 | Pad Assy, Ov Dr W/w | 01 |
|
- | ||||
| 10 | 2401W049-70 | Panel, (black) | 01 |
|
- | ||||
| 11 | 3804J038 | Support, Glass | 01 |
|
- | ||||
| 12 | 1986258 | Screw, Special | 01 |
|
- | ||||
| 13 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 01 |
|
Immediately | $ 7.69 | |||
| 14 | 8010P015-60 | Spacer, Handle (blk) | 01 |
|
- | ||||
| 15 | 74003986 | Spacer, Glass (Replaces: 8010E016) | 01 |
|
$ 13.08 | ||||
| 15 | 7803E027 | Spring, Oven Door | 01 |
|
- | ||||
| 16 | 5700A084-60 | + Window, Pkg | 01 |
|
- | ||||
| 16 | 5700A091-60 | Window Pak Assy. | 03 |
|
- |
