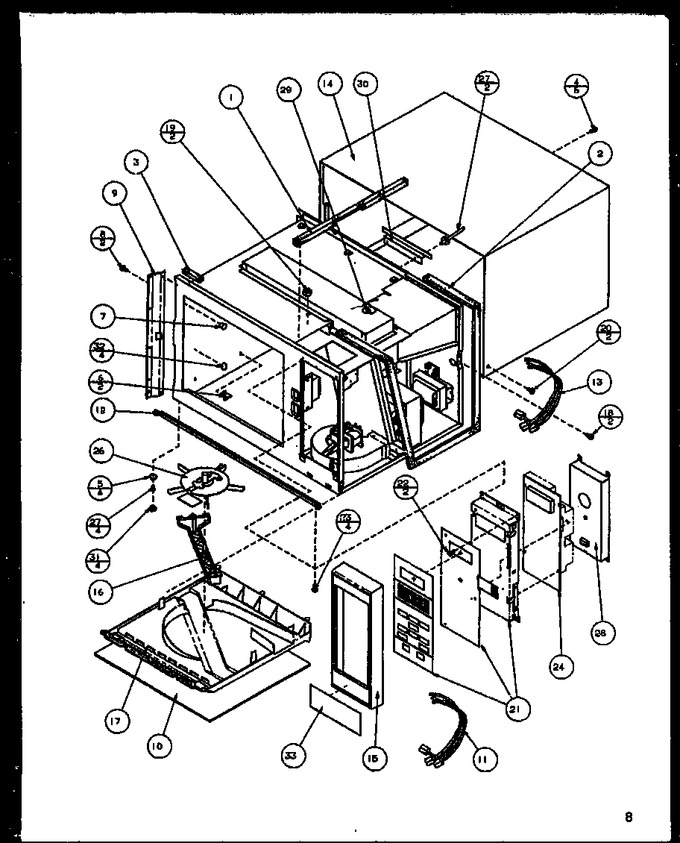

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8369901		Gasket, Oven Top		Appelez-nous	-
2	A3263907		Gasket - Each		Appelez-nous	-
3	A3030301		Gasket (inch)		Appelez-nous	-
4	M0220303		Screw, Tf		Appelez-nous	-
5	B5732506		Foot O.c. Wrapper		Appelez-nous	-
6	B8374901		Support, Shelf		Appelez-nous	-
7	M0308801		Cap, Protective-threaded (red)		Appelez-nous	-
8	M0251002		Screw		Appelez-nous	-
9	C8935901		Brkt,hinge Support		Appelez-nous	-
10	C8936903		Tray-glass Floor		Appelez-nous	-
12	C8943601		Trim		Appelez-nous	-
14	D7684902		Wrapper O.c. (black)		Appelez-nous	-
15	D7704503		Escut. Control		Appelez-nous	-
16	D7685502		Cradle, Antenna		Appelez-nous	-
17	D7692501		Grease Shield		Appelez-nous	-
18	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
19	M0288808		Nut		Appelez-nous	-
20	M0215116		Screw		Appelez-nous	-
22	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
23	M0224803		Screw, Tf		Appelez-nous	-
26	C8943002		Assy, Antenna		Appelez-nous	-
27	A4539625		Pop Rivet		Appelez-nous	-
28	Y00000000		See Note Control Assembly		Appelez-nous	-
29	M0310316		Plug Button		Appelez-nous	-
30	C8962101		Retainer, Cord		Appelez-nous	-
31	C8965402		Plug,foot		Appelez-nous	-
32	M0310324		Button, Plug		Appelez-nous	-
NI	M0275593		Sealer, Rtv		Appelez-nous	-
NI	M0275501		Sealer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
