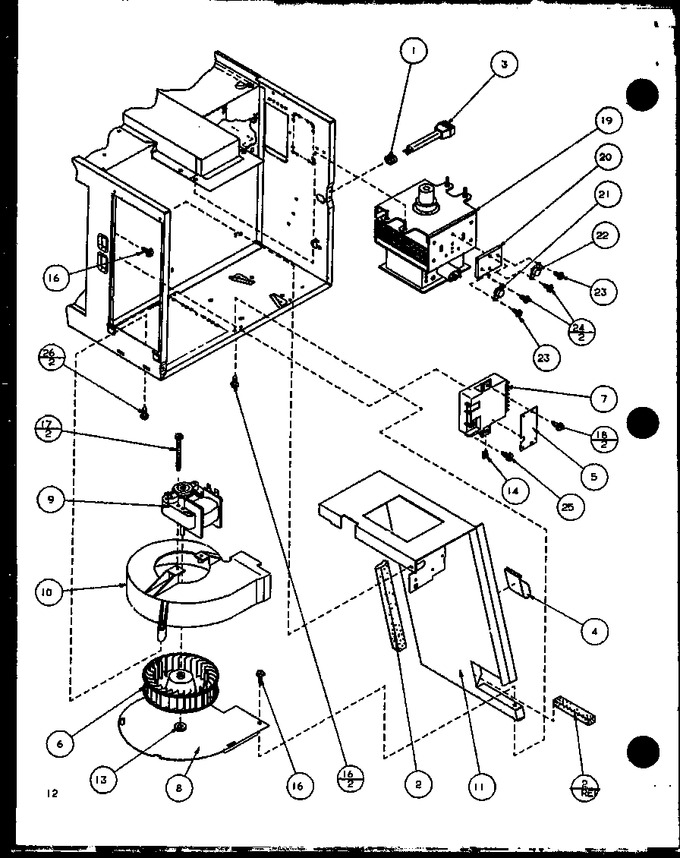

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0370003		Strain Relief		Appelez-nous	-
2	A3030302		Gasket		Appelez-nous	-
3	10098901		Power Cord		Appelez-nous	-
4	M0104102		Clip, Cord				$ 8.10
5	B8370602		Bracket S.w. Mtg		Appelez-nous	-
6	C8793501		Blower Wheel		Appelez-nous	-
7	C8935806		Switch, Interlock		Appelez-nous	-
7	10403501		Switch, Interlock Assy		Appelez-nous	-
8	C8942501		Brkt Scroll		Appelez-nous	-
9	D7670301		Motor, Blower		Appelez-nous	-
10	D7684601		Scroll, Blower		Appelez-nous	-
11	D7685409		Blower Partition,black E Ct		Appelez-nous	-
13	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
14	M0288213		Clip		Appelez-nous	-
16	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
17	M0213123		Screw		Appelez-nous	-
17	M0254713		Screw		Appelez-nous	-
18	M0216517		Screw		Appelez-nous	-
19	C8761715		Magnetron		Appelez-nous	-
20	B8380601		Plate, Thermal Cutout		Appelez-nous	-
21	B5684109		Protector, Thermal		Appelez-nous	-
22	B5684113		Protector, Thermal		Appelez-nous	-
23	M0232012		Screw		Appelez-nous	-
24	M0229916		Screw T.c		Appelez-nous	-
25	M0251002		Screw		Appelez-nous	-
26	M0254706		Screw		Appelez-nous	-
