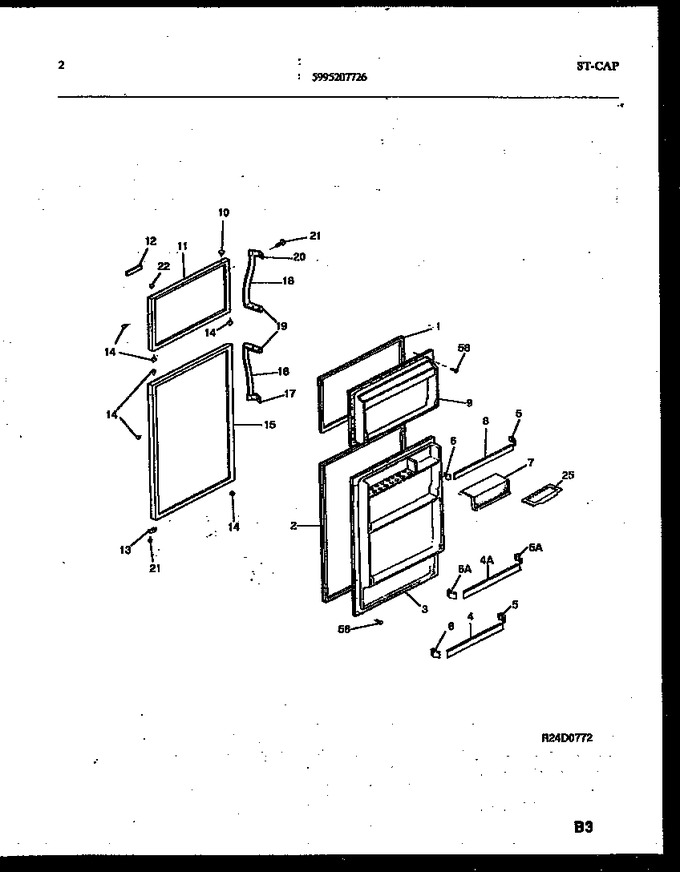

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001399 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 218730603 | Gasket-refr Door, Magnetic (Replaces: 5303001517) |
|
$ 62.07 | |||||
| 3 | 5303274306 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5349007902 | Rack-door, (2) |
|
- | |||||
| 5 | 5317689101 | Support-door Rack, Rh, (3) |
|
- | |||||
| 6 | 5317689201 | Support-door Rack, Lh, (3) |
|
- | |||||
| 7 | 5303274304 | Door-dairy |
|
- | |||||
| 8 | 5349007923 | Rack-door, Freezer |
|
- | |||||
| 9 | 5303274303 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Button Plug, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916917 | Panel-frzr Door, White |
|
- | |||||
| 12 | 5300176986 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Button Plug, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916824 | Panel-refr Door, White |
|
- | |||||
| 17 | 5303001015 | Handle - End Bottom |
|
$ 74.29 | |||||
| 18 | 5317566618 | Grip-handle, (2) |
|
- | |||||
| 19 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 20 | 5303001014 | Handle - End Top |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr/refr, (2) (non-illustrated) |
|
$ 42.20 | |||||
| 4A | 5317722001 | Rack-door |
|
- | |||||
| 5A | 5317722101 | Support-door Rack, Rh |
|
- | |||||
| 6A | 5317722201 | Support-door Rack, Lh |
|
- |
