02 - Door Parts
03 - Door Parts

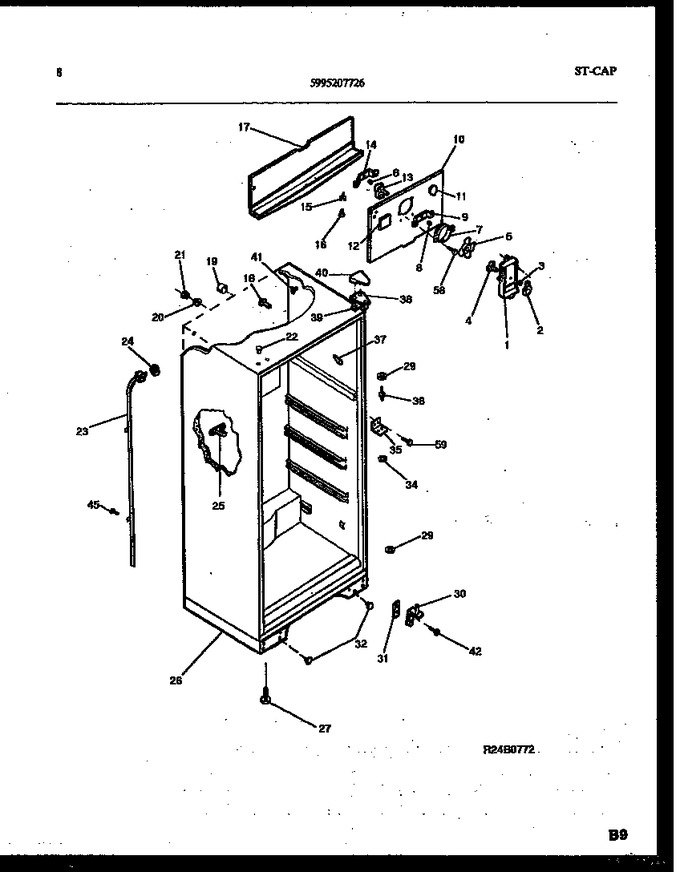

04 - Cabinet Parts
05 - Cabinet Parts
06 - Shelves And Supports
07 - Shelves And Supports
08 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 29 | 5308000007 | Washer, .34 X .62 X .05, Nylon |
|
- | |||||
| 30 | 5303212489 | Bracket-lower Hinge, W/ Hinge Pin |
|
- | |||||
| 31 | 5303212488 | Shim-lwr Hinge Brkt |
|
$ 5.25 | |||||
| 32 | 5303212923 | Button Plug-cab Base, (2) |
|
- | |||||
| 34 | 5308000186 | Washer, .34 X .62 X .10, Nylon |
|
Immediately | $ 6.02 | ||||
| 35 | 5303001369 | Bracket- Center Hinge |
|
- | |||||
| 36 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 37 | 5303202336 | Trim, Cabinet Corner, White, (4) |
|
- | |||||
| 38 | 5308012843 | Bracket-upper Hinge |
|
$ 71.47 | |||||
| 39 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 40 | 5308012820 | Cover-upper Hinge, White |
|
- | |||||
| 41 | 5304509705 | Grommet-shelf Mtg, Rh (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 42 | 5303001320 | Screw-hng/gusset Mtg, Hx Wshr Hd Mach, 1/4-20 X 5/8, (6) |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| *52565 | 5308016571 | Button Plug-liner |
|
$ 4.79 | |||||
| 30A | 5303212596 | Tapping Plate/gusset, Lh (non-illustrated) |
|
- | |||||
| 30B | 5303212597 | Tapping Plate/gusset, Rh (non-illustrated) |
|
- | |||||
| 38A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 38B | 5308012296 | Tapping Plate, Upper Hinge, (2) (non-illustrated) |
|
$ 47.44 | |||||
| 41A | 5304500407 | Grommet, Shelf Mtg, Lh (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 |
