02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

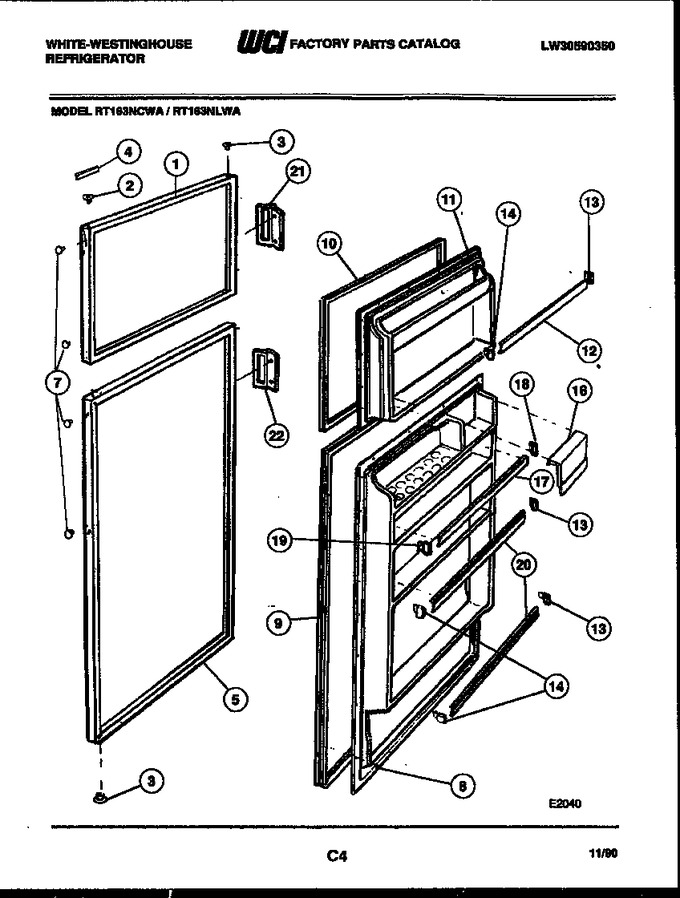

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916820		Frzr Door - Almond		Appelez-nous	-
2	5303001308		Plug-almond (2)		Appelez-nous	-
3	5308012007		Bearing, Hinge (8)		Appelez-nous	-
4	3206159		Nameplate		Appelez-nous	-
5	5303916822		Refr Door - Almond		Appelez-nous	-
7	5308000181		Plug - Almond (10)		Appelez-nous	-
8	G176988-01		Inner Panel-refr		Appelez-nous	-
9	218730603		Gasket - Refr   (Replaces: 5303001517)				$ 62.07
10	5303001399		Gasket - Frzr		Appelez-nous	-
11	G176904-01		Inner Panel-frzr		Appelez-nous	-
12	5349007917		Door Rack - Frzr		Appelez-nous	-
13	5317689101		Support Rh (3)		Appelez-nous	-
14	5317689201		Support Lh (3)		Appelez-nous	-
16	G176911-01		Dairy Door		Appelez-nous	-
17	5317722001		Door Rack - Refr		Appelez-nous	-
18	5317722101		Support Rh		Appelez-nous	-
19	5317722201		Support Lh		Appelez-nous	-
20	5349007917		Door Rack - Lwr (2)		Appelez-nous	-
21	3206158		Handle - Fzr		Appelez-nous	-
22	3206148		Handle-refr		Appelez-nous	-
*37899	5308011745		Screw				$ 10.38
11A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
5A	5303007739		Insulation-bulk (non-illustrated)		Appelez-nous	-
8A	218843801		Screw   (Replaces: 5303001001)				$ 14.41

    View Diagram in Separate Window       Print Part List
