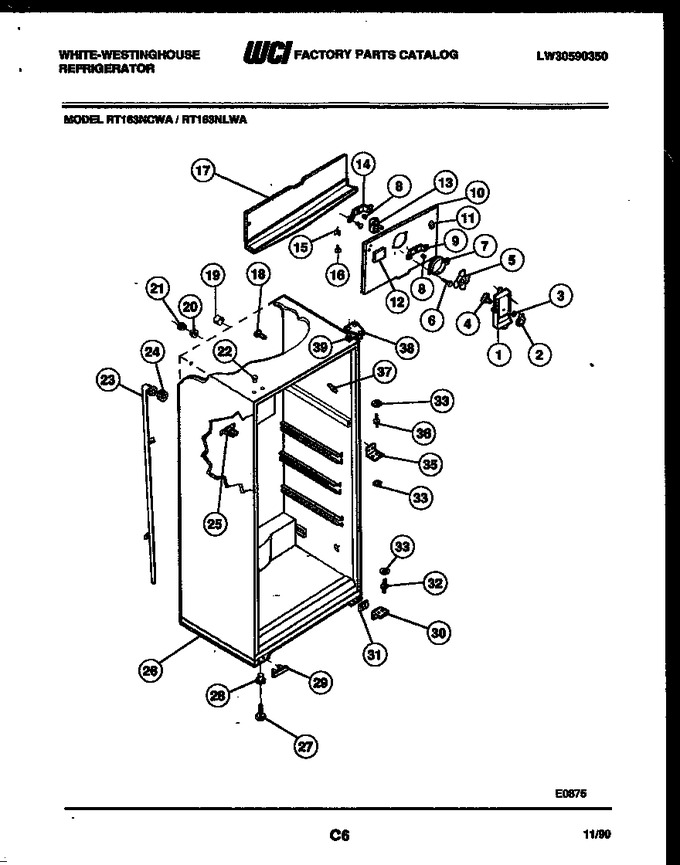

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205739		Cover - Fan		Appelez-nous	-
2	5316266313		Knob-damper Control		Appelez-nous	-
3	5303001028		Push-nut		Appelez-nous	-
4	5303001331		Damper, Fan				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
6	5303210353		Screw - Fan Assy (2)		Appelez-nous	-
7	5308000124		Orifice Ring				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303001226		Bracket-front		Appelez-nous	-
10	3001527		Cover - Evaporator Coil		Appelez-nous	-
11	5303208309		Plug, Short Test Hole				$ 45.50
12	5303018193		Plug-decorative		Appelez-nous	-
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303205119		Bracket, Rear		Appelez-nous	-
15	5308000107		Bracket-connector				$ 33.23
16	218843801		Screw   (Replaces: 5303001001)				$ 14.41
17	08010005		Drain Trough		Appelez-nous	-
18	5308000097		Support-coil Cvr (2)		Appelez-nous	-
19	5303001198		Tube, Rubber (2)		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303001389		Plug-almond		Appelez-nous	-
23	5303210377		Drain Tube And Ring Seal				$ 109.31
24	5303207353		Seal Ring				$ 6.81
25	5308000056		Drain Spout				$ 11.66
26	08010091		Cabinet Base		Appelez-nous	-
27	5303205540		Leveling Screw (2)		Appelez-nous	-
28	5308003584		Anchor Nut (2)				$ 7.30
29	5303001478		Plug, Hinge Hole		Appelez-nous	-
30	5303202834		Bracket, Bottom Hinge				$ 89.41
31	5303001323		Shim, Bottom Hinge		Appelez-nous	-
32	5303001321		Pin, Bottom Hinge				$ 17.25
33	5308000186		Washer - 1/4 Nylon (3)			Immediately	$ 6.02
34	5303206754		Washer - 7/32 X 7/16 Od (2)		Appelez-nous	-
35	5303001369		Bracket- Center Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202340		Corner Trim-almond		Appelez-nous	-
38	5308012843		Hinge-top				$ 71.47
39	5303001037		Shim, Top Hinge				$ 12.39
*37909	5304509705		Grommet, Shelf Rh (2)   (Replaces: 5303001609)				$ 10.01
*37909	5308016571		Plug, Freezer Liner (3)				$ 4.79
*37910	5304500407		Grommet - Shelf - Lh (2)   (Replaces: 5308009759)			Immediately	$ 6.38
10A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
10B	5303209814		Nut-``u`` Type (non-illustrated)		Appelez-nous	-
10C	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
1A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
1B	G176893		Label-fan Cover (non-illustrated)		Appelez-nous	-
23A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
25A	5303001361		Push Pin-spout (2) (non-illustrated)		Appelez-nous	-
30A	5303001320		Screw, Hinge Mounting (2) (non-illustrated)		Appelez-nous	-
31A	5308012296		Tapping Plate (2) (non-illustrated)				$ 47.44
35A	5308012258		Screw				$ 2.25
38A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38B	5308012296		Plate-tapping (2) (non-illustrated)				$ 47.44
