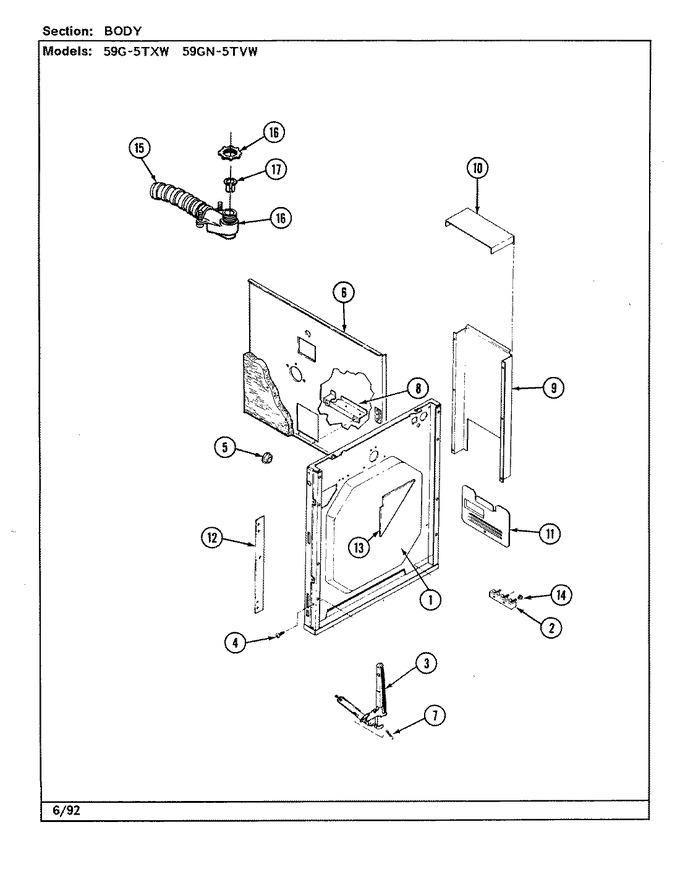

01 - Body
02 - Control Panel (with Tx)
03 - Door
04 - Internal Controls
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4009W085-80 | Lining,inner Side (l) | 01 |
|
- | ||||
| 1 | 7103P051-60 | Nut, Snap | 01 |
|
- | ||||
| 1 | 7103P040-60 | Nut, Snap (wht) | 01 |
|
- | ||||
| 1 | WP4159193 | Screw (Replaces: 7101P112-60) | 01 |
|
$ 4.29 | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 01 |
|
Immediately | $ 31.65 | |||
| 3 | 7106P041-60 | Hinge | 01 |
|
- | ||||
| 4 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 5 | 8008P002-60 | Bushing, Snap | 01 |
|
- | ||||
| 6 | 4002F174-80 | Back, Main | 01 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 7 | 04000040 | Spring, Mini-stanley | 01 |
|
- | ||||
| 8 | 3605F163-80 | Plate Conduit | 01 |
|
- | ||||
| 9 | 4001F051-80 | Housing Main Wire | 01 |
|
- | ||||
| 10 | 4005F157-80 | Cover, Wire Housing | 01 |
|
- | ||||
| 11 | 4005F361-51 | Cover Access | 01 |
|
- | ||||
| 12 | 3601F214-51 | Baffle Side Panel | 01 |
|
- | ||||
| 13 | 4005F364-51 | Cover, Switch | 01 |
|
- | ||||
| 14 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) | 01 |
|
Immediately | $ 6.47 | |||
| 15 | 5140A026-60 | Wires Conduit | 01 |
|
- | ||||
| 15 | 3414F066-51 | Tubing, Conduit | 01 |
|
- | ||||
| 15 | 7109P002-60 | Washer | 01 |
|
- | ||||
| 16 | 7417P005-60 | Connector, Conduit | 01 |
|
- | ||||
| 17 | 8018P002-60 | Sleeve, Tube | 01 |
|
- | ||||
| 18 | 4804F020-60 | Insulation - Rear | 01 |
|
- |
