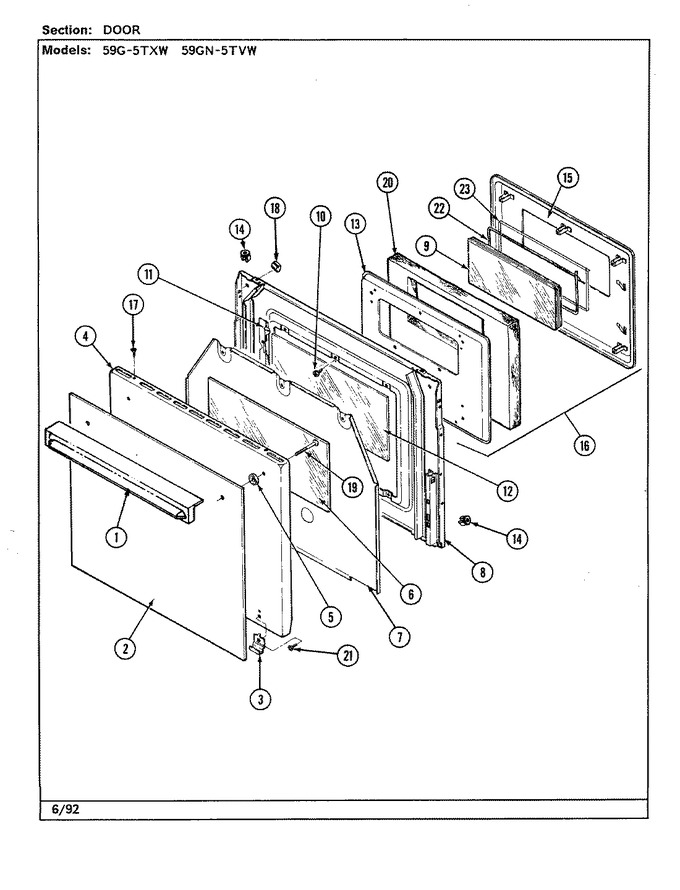

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7701P093-60 | Handle Door | 01 |
|
- | ||||
| 2 | 7902P354-60 | Glass Door | 01 |
|
- | ||||
| 3 | 8270P010-60 | Tape, Retainer Clip | 01 |
|
- | ||||
| 3 | 7112P093-60 | Clip, Glass (blk) | 01 |
|
$ 12.67 | ||||
| 4 | 2401W101-70 | Panel, Door Assy | 01 |
|
- | ||||
| 5 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 01 |
|
$ 13.08 | ||||
| 6 | 7902P135-60 | Glass, Clear | 01 |
|
- | ||||
| 7 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 7 | 3601F206-51 | Baffle | 01 |
|
- | ||||
| 8 | 2402W186-19 | Lining Door | 01 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 8 | 8114P274-60 | Label (cleaning Inst.) | 01 |
|
- | ||||
| 9 | 7112P051-60 | Clip, Retainer | 01 |
|
- | ||||
| 9 | 7902S303-60 | Window Pak | 01 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 11 | 3804F051-80 | Retainer, Glass | 01 |
|
- | ||||
| 12 | 7902P097-60 | Glass, Inner | 01 |
|
$ 63.87 | ||||
| 12 | 8270P091-60 | Tape | 01 |
|
- | ||||
| 13 | 2410F016-51 | Pad, Inner | 01 |
|
- | ||||
| 14 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 01 |
|
$ 9.89 | ||||
| 15 | 2410W041-19 | Pad, Door | 01 |
|
- | ||||
| 16 | 2410A041-19 | Pad, Assy. | 01 |
|
- | ||||
| 17 | 7101P276-60 | Screw (blk) | 01 |
|
- | ||||
| 18 | 8003P009-60 | Bumper, Door (square) | 01 |
|
- | ||||
| 19 | W10080180 | Nut (Replaces: 7103P034-60) | 01 |
|
$ 12.13 | ||||
| 19 | 7109P012-60 | Washer, Lock | 01 |
|
- | ||||
| 19 | 7101P127-60 | Screw, Counterweight | 01 |
|
- | ||||
| 20 | 4804F006-60 | Insulation Door Pad | 01 |
|
- | ||||
| 21 | 7101P276-60 | Screw (blk) | 01 |
|
- | ||||
| 21 | WP854334 | Seal, Door Panel (Replaces: 7208P009-60) | 01 |
|
$ 11.95 | ||||
| 22 | 7201P018-60 | Gasket, Window | 01 |
|
- | ||||
| 23 | 3804F022-45 | Retainer | 01 |
|
- |
