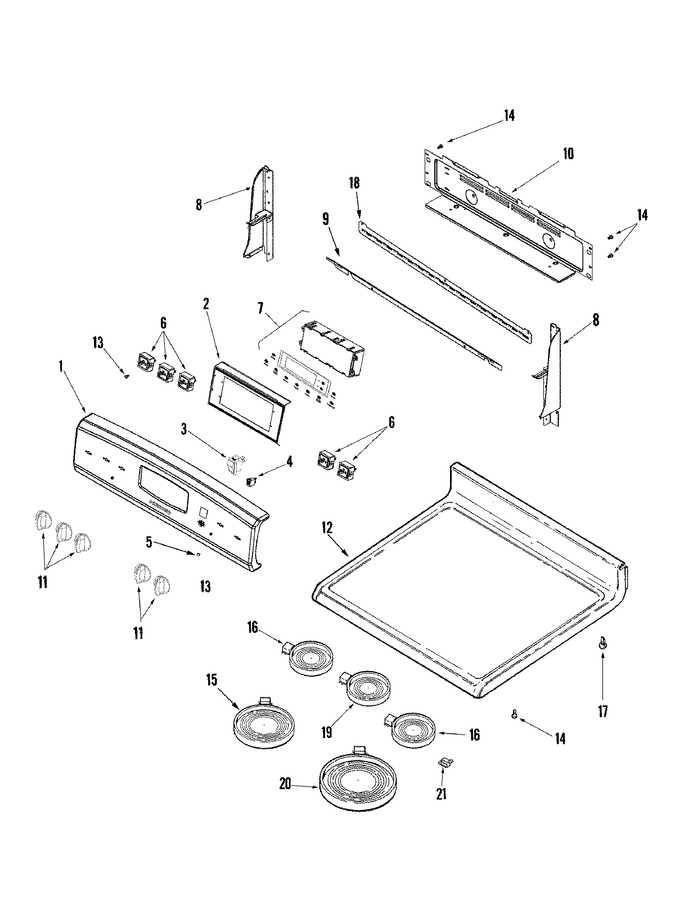

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer
04 - Oven/base
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010252 | Panel, Control (blk) | A |
|
- | ||||
| 2 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | A |
|
$ 6.47 | ||||
| 2 | 74008716 | Bracket, Clock | A |
|
- | ||||
| 3 | 74008718 | Switch, Rocker (blk) | A |
|
$ 50.46 | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | A |
|
Immediately | $ 8.02 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | A |
|
$ 5.16 | ||||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | A |
|
Immediately | $ 35.10 | |||
| 6 | 74006589 | Switch, Infinite (warming) | A |
|
- | ||||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | A |
|
Immediately | $ 57.78 | |||
| 7 | 74010263 | Clock W/overlay (blk-elec) | A |
|
- | ||||
| 7 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | A |
|
$ 6.47 | ||||
| 8 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | A |
|
$ 6.47 | ||||
| 8 | 74010202 | Support, Backguard (lt-blk) | A |
|
- | ||||
| 8 | WP98008545 | Screw (blk) (Replaces: 74009537) | A |
|
$ 15.94 | ||||
| 8 | 74010201 | Support, Backguard (rt-blk) | A |
|
- | ||||
| 9 | WP90767 | Screw (Replaces: Y700502) | A |
|
Immediately | $ 7.04 | |||
| 9 | 74009701 | Shield, Rear Sight | A |
|
- | ||||
| 10 | 74009943 | Cover, Rear Wire (upr) | A |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: Y700502) | A |
|
Immediately | $ 7.04 | |||
| 11 | 74010248 | Knob (wht) | A |
|
- | ||||
| 12 | 74010265 | Top Assembly (blk) | A |
|
- | ||||
| 13 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | A |
|
Immediately | $ 6.26 | |||
| 14 | WP7101P498-60 | Screw (6abx.25-zn) (Replaces: 74003357) | A |
|
$ 6.74 | ||||
| 15 | W10823697 | Element (2200w) (Replaces: 74008569) | A |
|
$ 326.21 | ||||
| 16 | W10823711 | Element (1200w) (Replaces: 74008568) | A |
|
Immediately | $ 183.95 | |||
| 17 | W11189172 | Glide, Main Top (Replaces: 74004558) | A |
|
Immediately | $ 15.09 | |||
| 18 | WP90767 | Screw (Replaces: Y700502) | A |
|
Immediately | $ 7.04 | |||
| 18 | 74009978 | Shield, Wire | A |
|
- | ||||
| 19 | 74008898 | Element, Warming | A |
|
$ 73.51 | ||||
| 20 | 74009082 | Element (12``) | A |
|
$ 199.46 | ||||
| 21 | 74007845 | Support, Element | A |
|
- |
