Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

1 74003386 Support, Broil Element A Appelez-nous -
2 WPW10310249 Element, Broil (4 Pass)   (Replaces: 74003041) A In-Stock Immediately $ 112.33

2 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

3 WP74010750 Element, Bake   (Replaces: 74003039) A In-Stock Immediately $ 47.69

3 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

4 WPW10282492 Rack, Oven   (Replaces: 74001757) A In-Stock Immediately $ 65.15

5 Y3401F02019 Pan, Broil A Appelez-nous -
5 W10124350 Not Required Part Or See Note No Longer Supplied With Unit E Appelez-nous -
5 W10124350 Not Required Part Or See Note No Longer Supplied With Unit C Appelez-nous -
6 W10124350 Not Required Part Or See Note No Longer Supplied With Unit E Appelez-nous -
6 W10124350 Not Required Part Or See Note No Longer Supplied With Unit C Appelez-nous -
6 Y3413F01619 Insert, Broil Pan A Appelez-nous -
7 74003388 Housing, Bulb A Appelez-nous -
8 8009 Bulb-oven   (Replaces: 7407P103-60) A In-Stock Immediately $ 16.80

9 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

9 74003387 Receptacle, Bulb A Special Order $ 5.84

10 74003389 Cover, Bulb A Appelez-nous -
11 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

11 12001656 Sensor, Oven (long)   (Replaces: 74004943) A In-Stock Immediately $ 39.55

12 74003391 Retainer, Bulb Cover A Appelez-nous -
13 74006522 Retainer, Insulation (bottom) A Appelez-nous -
13 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

14 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

14 74006325 Pedestal, Side A Appelez-nous -
15 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

15 4020F001-80 Pedestal, Front/rear A Appelez-nous -
16 74003565 Runner, Drawer A Appelez-nous -
16 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

17 74005230 Nut, Lock (8-32) A Special Order $ 12.02

17 74005231 Shaft, Storage Drawer Roller A Special Order $ 9.23

17 WP74004078 Roller, Drawer   (Replaces: 74004078) A In-Stock Immediately $ 10.70

18 WP3801F656-51 Bracket, Anti-tip   (Replaces: 74005564) A In-Stock Immediately $ 4.69

18 WP7101P485-60 Screw   (Replaces: 7101P352-60) A Special Order $ 26.33

19 74003285 Gasket, Vent A Appelez-nous -
20 74003394 Vent Box Assembly A Appelez-nous -
20 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

21 74009988 Bracket, Vent Extension A Appelez-nous -
21 74009987 Extension, Vent (elect) A Appelez-nous -
21 WP7101P434-60 Screw   (Replaces: 71001394) A Special Order $ 6.26

21 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) A In-Stock Immediately $ 12.62

22 W11665456 Leg, Leveling   (Replaces: 74002373) A In-Stock Immediately $ 25.30


    View Diagram in Separate Window     Print Icon   Print Part List

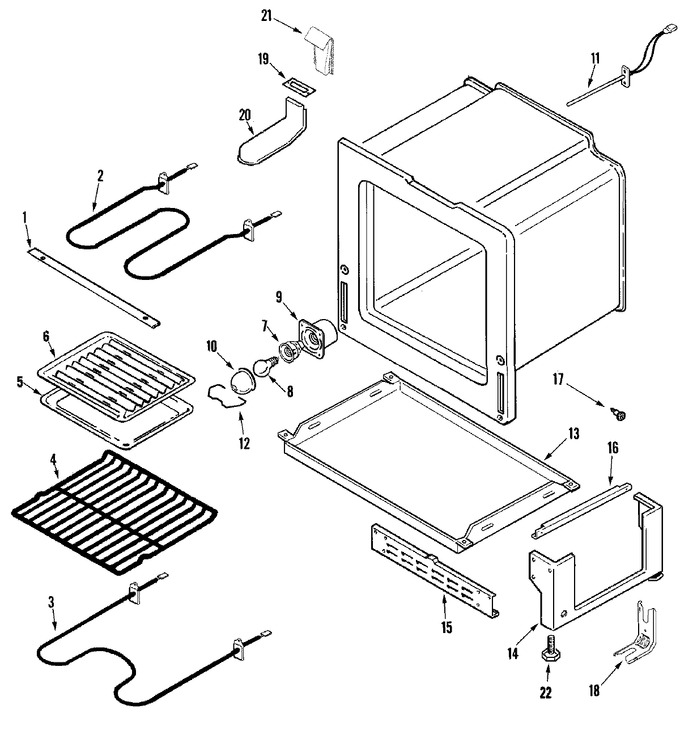

Diagram for RESF3330DB
