SELECT A DIAGRAM

01 - Base


02 - Controller


03 - Door


04 - Interior


05 - Oven Cavity


06 - Supplemental Information


07 - Wiring Information

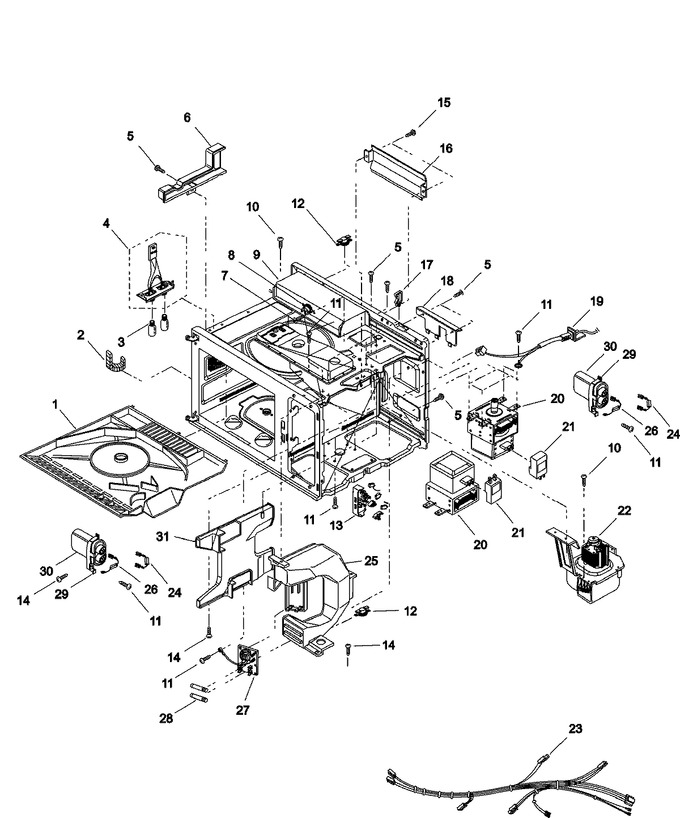

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53001588		Duct, Grease Shield		Appelez-nous	-
2	53001610		Gasket		Appelez-nous	-
3	53001590		Lamp		Appelez-nous	-
4	53001591		Lamp Socket / Bracket Assy		Appelez-nous	-
5	R0131246		Screw, Tapping Truss Head		Appelez-nous	-
6	53001592		Duct, Exhaust- Left		Appelez-nous	-
7	R0654030		Screw, Pan Hd S/tap		Appelez-nous	-
8	R9900321		Thermostat, Bimetal		Appelez-nous	-
9	53001559		Duct, Outlet-top		Appelez-nous	-
10	R0654180		Screw, Pan Hd		Appelez-nous	-
11	4344826		Screw, Bining Hd S/tap   (Replaces: R0654028)				$ 14.31
12	53001560		Thermal Cut Out- Magnetron				$ 16.60
13	53001600		Interlock Switch Assy		Appelez-nous	-
14	R0654183		Screw, Truss Hd		Appelez-nous	-
15	4344826		Screw, Bining Hd S/tap   (Replaces: R0654028)				$ 14.31
16	53001620		Air Deflector				$ 10.58
17	R9800440		Holder- Wiring		Appelez-nous	-
18	53001621		Cover, Power Cord		Appelez-nous	-
19	53001593		Power Cord Assembly		Appelez-nous	-
20	53001594		Magnetron		Appelez-nous	-
21	53001565		Filter Assembly				$ 27.81
22	53001595		Blower Motor Assembly		Appelez-nous	-
23	53001726		Harness, Main		Appelez-nous	-
24	53001725		Cable Assy, Circuit Protector		Appelez-nous	-
25	53001727		Duct, Mag.		Appelez-nous	-
26	WPR9800486		Diode- Black Sleeve   (Replaces: R9800486)				$ 26.79
27	53001596		Fuse Block / Filter Assy		Appelez-nous	-
28	14QBP12CSB		Fuse, 12 Amp   (Replaces: M0805105)				$ 1.65
29	53001728		Bracket, Capacitor, Front		Appelez-nous	-
30	53001903		Capacitor .91 Mfd. 2100v		Appelez-nous	-
31	53001729		Duct, Exhaust- Right		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
