SELECT A DIAGRAM

01 - Base


02 - Controller


03 - Door


04 - Interior


05 - Oven Cavity


06 - Supplemental Information


07 - Wiring Information

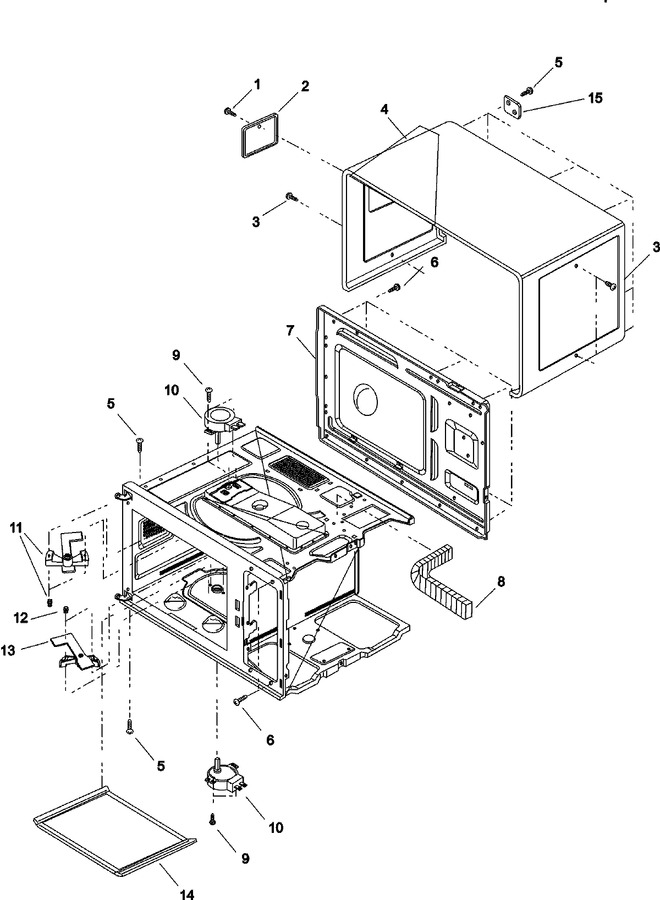

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53001609		Screw Tapping, Counter Sunk Hd		Appelez-nous	-
2	53001579		Cover, Lamp- Stainless		Appelez-nous	-
3	R0654036		Screw, Truss Hd S/tap		Appelez-nous	-
4	53001577		Outer Case- Stainless		Appelez-nous	-
5	R0654183		Screw, Truss Hd		Appelez-nous	-
6	R0131246		Screw, Tapping Truss Head		Appelez-nous	-
7	53001585		Back Plate		Appelez-nous	-
8	53001610		Gasket		Appelez-nous	-
9	R0654180		Screw, Pan Hd		Appelez-nous	-
10	59001625		Motor, Antenna 220-240v		Appelez-nous	-
11	12002592		Kit- Antenna Top				$ 145.29
12	53001554		Rivet Assembly		Appelez-nous	-
13	12002593		Kit- Antenna Bottom		Appelez-nous	-
14	53001555		Tray, Ceramic		Appelez-nous	-
15	53001619		Bracket, Stacking		Appelez-nous	-
NI	53001724		Bracket, Capacitor, Back		Appelez-nous	-
NI	53001725		Cable Assy, Circuit Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
