SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

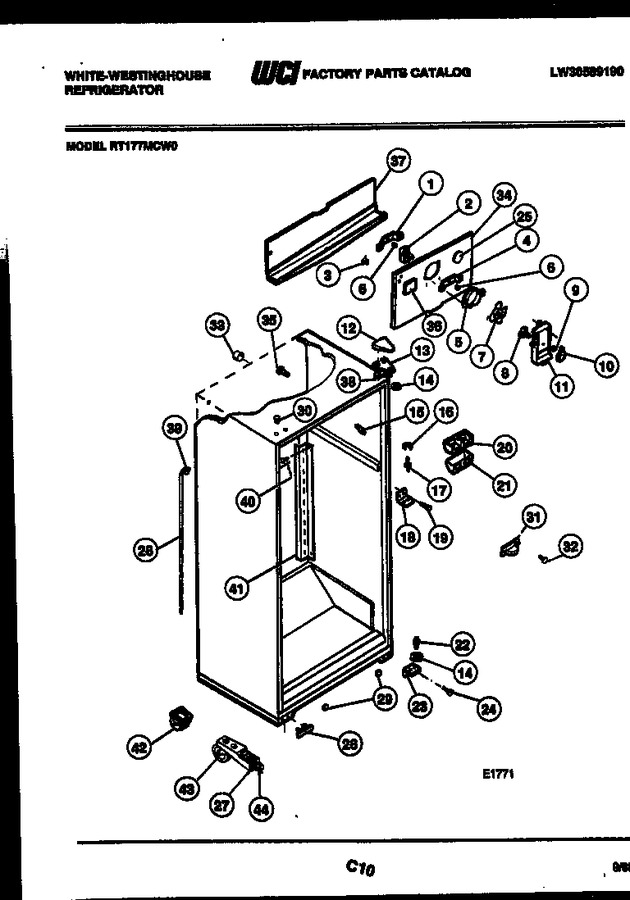

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G185303		Bracket-rear		Appelez-nous	-
2	G158289		Motor-fan		Appelez-nous	-
3	G164571		Connector Bracket		Appelez-nous	-
4	G185302		Bracket-front		Appelez-nous	-
5	G167217		Orifice Ring		Appelez-nous	-
6	G157666		Bushing (2)		Appelez-nous	-
7	G174705		Fan Blade		Appelez-nous	-
8	3206110		Damper				$ 53.08
9	G162662		Push Nut-damper		Appelez-nous	-
10	3206381		Knob - Damper Control		Appelez-nous	-
11	3206207		Cover-fan		Appelez-nous	-
12	3206103		Hinge Cover-wheat		Appelez-nous	-
13	3206100		Hinge, Top		Appelez-nous	-
14	G103903		Washer, Nylon				$ 3.10
15	3202338		Corner Trim-wheat		Appelez-nous	-
16	08000186		Washer-hinge		Appelez-nous	-
17	G142220		Pin		Appelez-nous	-
18	G163207		Bracket-center Hinge		Appelez-nous	-
19	3206134		Screw-mounting (2)		Appelez-nous	-
20	3204206		Air Deflector		Appelez-nous	-
21	G162178		Cover, Deflector		Appelez-nous	-
22	G166505		Pin-bottom Hinge		Appelez-nous	-
23	3206136		Bracket-bottom Hinge		Appelez-nous	-
24	3206143		Screw-mounting (4)		Appelez-nous	-
25	3203044		Plug-short Test Hole		Appelez-nous	-
26	3206135		Cover-hinge Screw		Appelez-nous	-
27	08011326		Washer-nylon (2)		Appelez-nous	-
28	3206115		Drain-tube		Appelez-nous	-
29	3206142		Plug-cabinet		Appelez-nous	-
30	G174747-09		Plug-button, Wheat		Appelez-nous	-
31	08000056		Spout-drain Tube		Appelez-nous	-
32	3001361		Push Pin-drain Spout		Appelez-nous	-
33	G85642		Tube, Rubber		Appelez-nous	-
34	3206119		Cover-evaporator Coil		Appelez-nous	-
35	G163669		Support, Cover (2)		Appelez-nous	-
36	3018193		Plug-decorative		Appelez-nous	-
37	3206146		Drain Trough		Appelez-nous	-
38	G183861		Shim Top Hinge		Appelez-nous	-
39	G176853		Ring, Seal		Appelez-nous	-
40	08010253		Screw-channel Mtg (6)		Appelez-nous	-
41	3206202		Channel-shelf Mtg (2)		Appelez-nous	-
42	3206237		Roller Assy Rear (2)		Appelez-nous	-
43	G188673		Roller Assy-front (2)		Appelez-nous	-
44	08009761		Bolt-adj (2)		Appelez-nous	-
*22342	G187599		Plug-freezer Liner (3)		Appelez-nous	-
*22343	G167565		Grommet-frzr Shelf Mtg Rh (2)		Appelez-nous	-
*22343	G176993		Grommet-frzr Shelf Mtg Lh (2)		Appelez-nous	-
11A	G187363		Screw		Appelez-nous	-
11B	3206208		Label-fan Cover (non-illustrated)		Appelez-nous	-
13A	3001479		Screw-mounting (2) (non-illustrated)		Appelez-nous	-
28A	G187009		Screw-mtg		Appelez-nous	-
34A	G167542		Nut-u Type (2)		Appelez-nous	-
34B	G187363		Screw		Appelez-nous	-
3A	3001001		Screw-mounting (non-illustrated)		Appelez-nous	-
43A	08000096		Screw-mtg (6) (non-illustrated)		Appelez-nous	-
43B	08009760		Roller (2) (non-illustrated)		Appelez-nous	-
43C	08009790		Spring-adj (2) (non-illustrated)		Appelez-nous	-
5A	3001001		Screw-fan Assy (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
