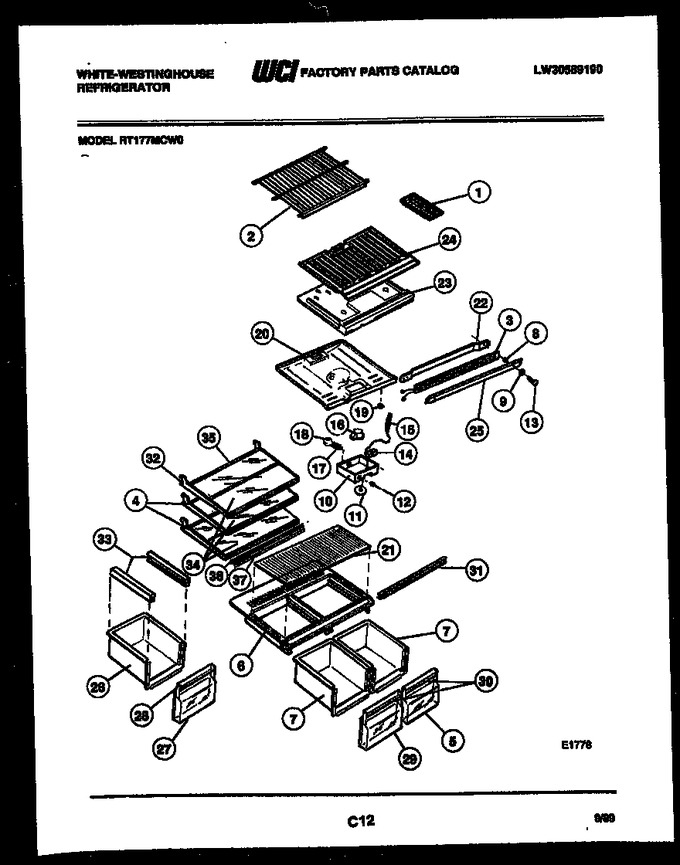

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3001324		Ice Tray (2)		Appelez-nous	-
2	3206353		Shelf-freezer		Appelez-nous	-
3	3206120		Heater-mullion		Appelez-nous	-
4	3203935		Frame-cantilever (2)		Appelez-nous	-
5	3206354		Front-crisper Pan-rh		Appelez-nous	-
6	3206183		Cover-crisper		Appelez-nous	-
7	3206180		Pan-crisper, (2)				$ 155.70
8	3200464		Spacer-mullion (2)		Appelez-nous	-
9	G166847		Washer-no. 10 Steel (2)		Appelez-nous	-
10	3206130		Control Box		Appelez-nous	-
11	3201777		Knob-temperature Control		Appelez-nous	-
12	3206129		Switch-energy Saver		Appelez-nous	-
13	3206134		Screw-mullion (4)		Appelez-nous	-
14	3018894		Control-temperature		Appelez-nous	-
15	3018891		Hsg-cont Cap Tube		Appelez-nous	-
16	G187484		Timer-defrost		Appelez-nous	-
17	08000815		Light Socket		Appelez-nous	-
18	3001179		Light Bulb		Appelez-nous	-
19	09918806		Light Switch		Appelez-nous	-
20	3206185		Top-refrigerator		Appelez-nous	-
21	3206355		Insert-crisper Cover		Appelez-nous	-
22	G166709		Strap-mullion Mtg		Appelez-nous	-
23	3206186		Divider, Styrofoam		Appelez-nous	-
24	3206187		Bottom-freezer		Appelez-nous	-
25	3206123		Mullion-wheat		Appelez-nous	-
26	3206351		Meat Pan		Appelez-nous	-
27	3206210		Front-meat Pan		Appelez-nous	-
28	3206211		Trim-meat Pan		Appelez-nous	-
29	3206181		Front-crisper Pan-lh		Appelez-nous	-
30	3206213		Trim-crisper Pan (2)		Appelez-nous	-
31	3206372		Trim-crisper Cover		Appelez-nous	-
32	3206377		Frame-meat Keep Shelf		Appelez-nous	-
33	3206380		Hanger-meat Pan, Rh		Appelez-nous	-
34	3206376		Glass-shelf		Appelez-nous	-
35	3206374		Trim-rear Shelf Retainer (3)		Appelez-nous	-
36	3206375		Retainer-glass (2)		Appelez-nous	-
37	3206206		Trim-shelf (3)		Appelez-nous	-
*22346	G170910		Clip-cantilever Shelf		Appelez-nous	-
*22346	3205266		Protector-edge (2)				$ 80.09
10A	G187363		Screw		Appelez-nous	-
14A	G107080		Screw		Appelez-nous	-
16A	G105289		Screw		Appelez-nous	-
20A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
23A	3018900		Wiring Harness - Divider (non-illustrated)		Appelez-nous	-
2A	3201150		Cap-protector (2) (non-illustrated)				$ 4.57
2B	3206203		Trim-shelf (non-illustrated)		Appelez-nous	-
2C	G167565		Grommet-rh (2) (non-illustrated)		Appelez-nous	-
2D	G176993		Grommet-lh (2) (non-illustrated)		Appelez-nous	-
33A	3206379		Hanger-meat Pan, Lh (non-illustrated)		Appelez-nous	-
33B	08014528		Screw (2) (non-illustrated)				$ 4.31
34A	3200901		Rail-glass Supt (6) (non-illustrated)		Appelez-nous	-
36A	3206378		Retainer-glass-meat Keeper Shelf (non-illustrated)		Appelez-nous	-
