SELECT A DIAGRAM

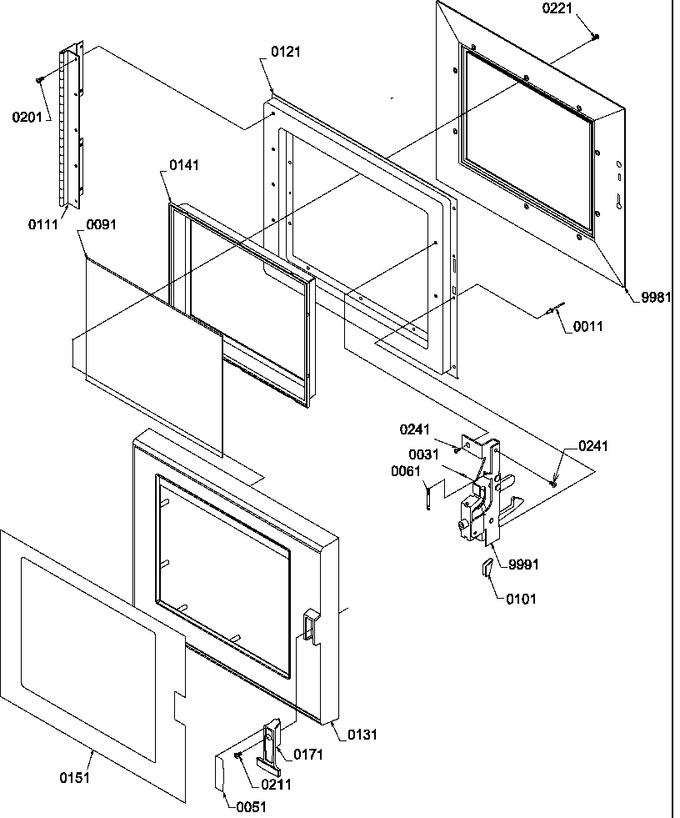

01 - Cabinet Assy


02 - Door Assy


03 - Miscellaeous Information


04 - Outer Cabinet/door/ctrl Panel/timer Assy


05 - Transformer/light Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	A4539601		Pop Rivet		Appelez-nous	-
31	B8379201		Pin, Latch		Appelez-nous	-
51	B8381101		Insert, Handle		Appelez-nous	-
61	C8893502		Spring, Door Latch		Appelez-nous	-
91	C8960401		Window, Outer		Appelez-nous	-
101	C8991301		Pad-latch Assy		Appelez-nous	-
111	C8961811		Hinge-door		Appelez-nous	-
121	D7683716		Kit, Weldment-inner Door		Appelez-nous	-
131	D7730001		Door,outer		Appelez-nous	-
141	D7731103		Retainer, Lens		Appelez-nous	-
151	D7738601		Insert Dr		Appelez-nous	-
171	D7751101		Handle Front Tee		Appelez-nous	-
201	M0234403		Screw		Appelez-nous	-
211	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
221	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
241	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
9981	D7784901		Inner Door/glass Assy		Appelez-nous	-
NI	R0150122		Latch Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
