01 - Cabinet Assy
02 - Door Assy
03 - Miscellaeous Information

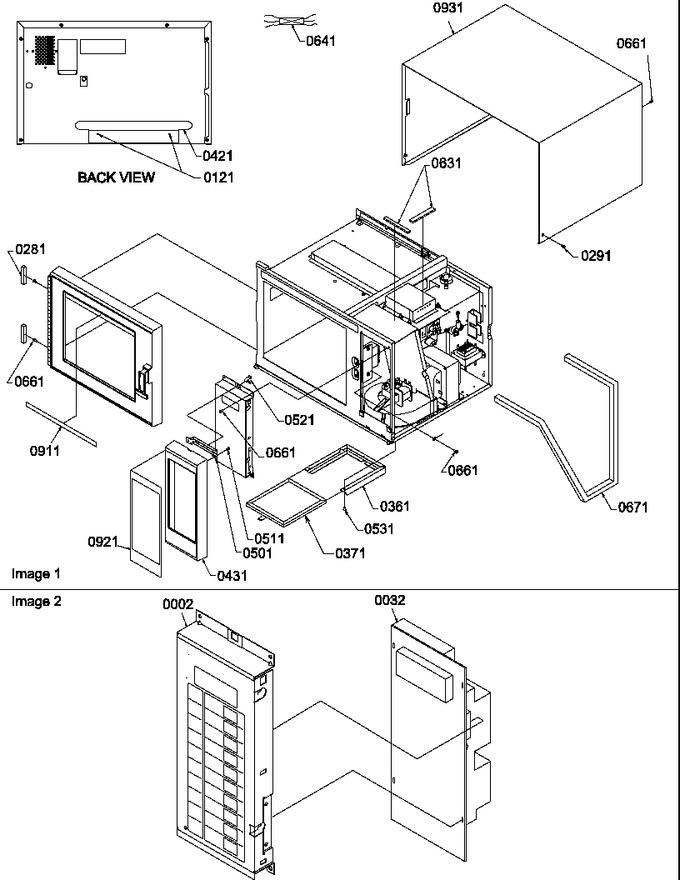

04 - Outer Cabinet/door/ctrl Panel/timer Assy
05 - Transformer/light Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | R0163274 | Assy, Keyboard |
|
- | |||||
| 32 | 10015809 | Pc Board Assy (Replaces: R0163195) |
|
$ 299.99 | |||||
| 281 | A3263904 | Gasket |
|
- | |||||
| 291 | M0249619 | Screw, T F |
|
- | |||||
| 361 | D7740902 | Bracket |
|
- | |||||
| 371 | 10169101 | Filter, Preform |
|
- | |||||
| 421 | M0118705 | Clip, Guide |
|
- | |||||
| 431 | D7730101 | Escutcheon Control |
|
- | |||||
| 501 | C8960301 | Bracket |
|
- | |||||
| 511 | M0234403 | Screw |
|
- | |||||
| 521 | B8379401 | Clip |
|
- | |||||
| 531 | M0230017 | Screw,tc |
|
- | |||||
| 631 | A4591129 | Gasket K |
|
- | |||||
| 641 | 12360401 | Harness, Oven |
|
- | |||||
| 661 | M0231717 | Screw, Tf |
|
- | |||||
| 671 | A3263907 | Gasket - Each |
|
- | |||||
| 911 | C8962444 | Thin Plate Door |
|
- | |||||
| 921 | 10055103 | Insert, Escutcheon |
|
- | |||||
| 931 | D7684903 | Wrapper |
|
- |
