01 - Ice Maker Installation
02 - Ice Maker

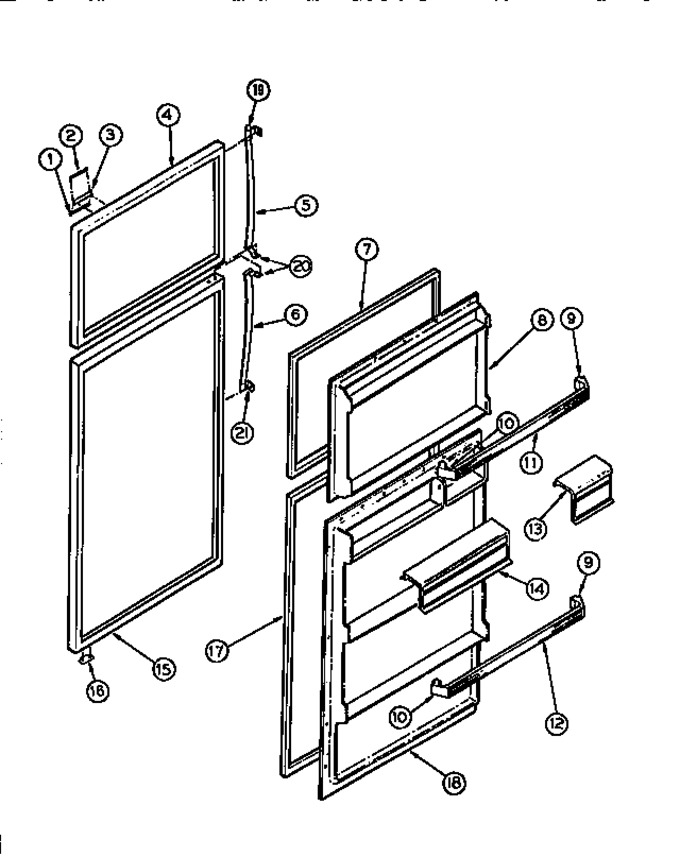

03 - Door Parts
04 - Cabinet Parts
05 - Cabinet Parts
06 - System & Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G175393-01 | Label, Nameplate, Lower |
|
- | |||||
| 2 | G175118-02 | Label, Nameplate, Upper |
|
- | |||||
| 3 | G175117-02 | Nameplate |
|
- | |||||
| 4 | G183892 | Panel, Exterior Door (not Illustrated) |
|
- | |||||
| 5 | G170495-24 | Handle, Freezer Door |
|
- | |||||
| 6 | G170495-24 | Handle, Refrigerator Door |
|
- | |||||
| 7 | G186932-03 | Gasket, Freezer Door |
|
- | |||||
| 8 | G184557-01 | Panel, Interior Door |
|
- | |||||
| 9 | G152888-04 | Support, Rh Door Racks (4) |
|
- | |||||
| 10 | G152887-04 | Support, Lh Door Racks (4) |
|
- | |||||
| 11 | G162887-15 | Rack, Freezer (2) |
|
- | |||||
| 12 | G162887-12 | Rack, Refrigerator (2) |
|
- | |||||
| 13 | G178500-22 | Door, Dairy |
|
- | |||||
| 14 | G178501-11 | Door, Dairy |
|
- | |||||
| 15 | G183896 | Panel, Exterior Door (not Illustrated) |
|
- | |||||
| 16 | G155072 | Stop, Door (2) |
|
- | |||||
| 17 | G186932-11 | Gasket, Refrigerator Door |
|
- | |||||
| 18 | G184558-01 | Panel, Interior Door |
|
- | |||||
| 19 | G179800 | End, Handle Top |
|
- | |||||
| 20 | G170507-01 | End, Handle (2) |
|
- | |||||
| 21 | G179801 | End, Handle, Bottom |
|
- | |||||
| *24049 | G168981-01 | Kit, Door Conversion |
|
- | |||||
| *24050 | G169332-01 | Button Plug, White |
|
- | |||||
| *24056 | G162977-01 | Button Plug-white |
|
- | |||||
| 15A | G183138 | Bearing, Hinge (4) |
|
- | |||||
| 18A | G162585 | Screw |
|
- | |||||
| 3A | G141624-04 | Tape, Frame To Door |
|
- | |||||
| 4A | G183138 | Bearing, Hinge (4) |
|
- | |||||
| 6A | G185566 | Screw |
|
- | |||||
| 8A | G162585 | Screw |
|
- |
