01 - Ice Maker Installation
02 - Ice Maker
03 - Door Parts

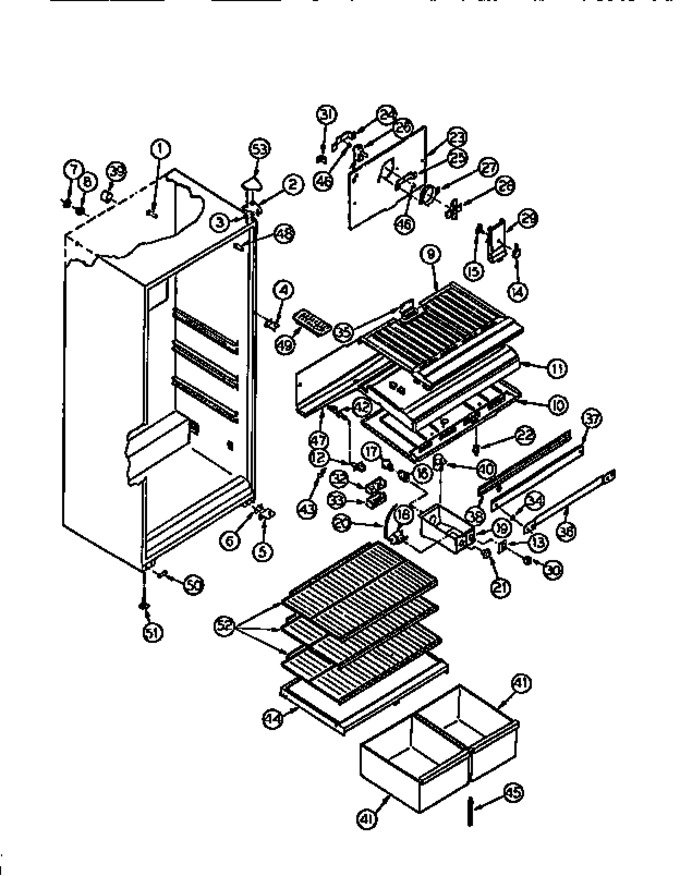

04 - Cabinet Parts
05 - Cabinet Parts
06 - System & Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | G178402-05 | Switch, Slide |
|
- | |||||
| 31 | G164571 | Bracket, Connector |
|
- | |||||
| 32 | G162675 | Deflector Air |
|
- | |||||
| 33 | G162178 | Cover, Air Deflector |
|
- | |||||
| 34 | G490082 | Spacer Mullion Mounting (2) |
|
- | |||||
| 35 | G168866 | Pad Foam |
|
- | |||||
| 36 | G166709 | Strap, Mullion Mounting |
|
- | |||||
| 37 | G490086 | Mullion (not Illustrated) |
|
- | |||||
| 38 | G177255 | Heater, Mullion |
|
- | |||||
| 39 | G85642 | Tube, Ferrule (2) |
|
- | |||||
| 40 | G174820 | Timer, Defrost |
|
- | |||||
| 41 | G490015-38 | Pan, Storage |
|
- | |||||
| 42 | G184920-01 | Tube, Defrost Drain |
|
- | |||||
| 43 | G101747 | Clamp |
|
- | |||||
| 44 | G490016-01 | Cover-crisper |
|
- | |||||
| 45 | G166310-02 | Support, Crisper Cover |
|
- | |||||
| 46 | G157666 | Bushing-motor Mtg (2) |
|
- | |||||
| 47 | G490043 | Trough-drain |
|
- | |||||
| 48 | G179684-01 | Trim, Corner Cabinet (4) (not Illustrated) |
|
- | |||||
| 49 | G156376-13 | Tray, Ice (2) |
|
- | |||||
| 50 | G166912 | Bottom Plug, Lower Lh Hinge Hole |
|
- | |||||
| 51 | G185713 | Screw, Leveling (2) |
|
- | |||||
| 52 | G181153-05 | Shelf, Sliding (3) |
|
- | |||||
| 53 | G183558-01 | Cover, Top Hinge (not Illustrated) |
|
- | |||||
| 31A | G162585 | Screw |
|
- | |||||
| 34A | G166847 | Washer, Mullion Mtg. (4) |
|
- | |||||
| 40A | G105289 | Screw |
|
- | |||||
| 41A | G490015-39 | Pan, Storage |
|
- | |||||
| 51A | G183073 | Nut, Anchor (2) |
|
- |
