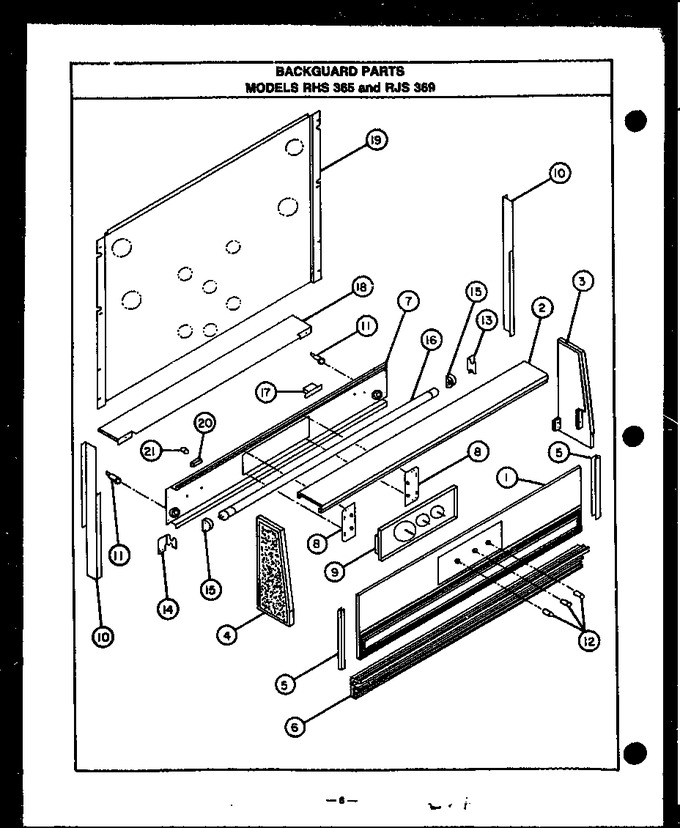

01 - Backguard Parts Models Rhs365 & Rjs 369


02 - Gas Components


03 - Lower Oven Assy


04 - Lower Storage Drawer


05 - Oven Door Parts


06 - Oven Electrical Components


07 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0060201		Glass, Backguard		Appelez-nous	-
2	0060623		Trim, Top, Backguard		Appelez-nous	-
3	0060696		Sub 301002, End Cap Bkgd. R.h.		Appelez-nous	-
4	Y0060695		End Cap, Bkgd L.h.		Appelez-nous	-
5	0063575		Channel, Glass		Appelez-nous	-
6	0061800		Trim, Lower		Appelez-nous	-
7	Y0060180		Backguard, Control Panel		Appelez-nous	-
8	0061264		Bracket, Clock Mtg.		Appelez-nous	-
9	0060171		Clock, Analog		Appelez-nous	-
10	Y0060951		Support, Backguard		Appelez-nous	-
11	Y0071820		Indicator Light		Appelez-nous	-
12	Y0042633		Knob, Clock W/o Spring		Appelez-nous	-
13	0061242		Bracket, Lamp Socket, R.h.		Appelez-nous	-
14	0061241		Bracket, Lamp Socket, L.h.		Appelez-nous	-
15	Y0071924		Light Socket		Appelez-nous	-
16	WPY0067945		Lamp, Flourescent   (Replaces: Y0067945)				$ 29.33
17	Y0071869		Ballast		Appelez-nous	-
18	Y0060069		Heat Sheild Backguard		Appelez-nous	-
19	Y0062790		Rear Cover Plate		Appelez-nous	-
20	0071964		Socket, Starter		Appelez-nous	-
21	0071920		Starter, Flourescent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
